Description
Unlock Vibrant Visuals with Our 5.6-Inch TFT LCD Display!
Delve into the immersive world of cutting-edge displays with our latest offering: the SHENZHEN TECHSTAR ELECTRONICS INCORPORATED CO., LTD  SF-TC560I-9270B-T 5.6-inch TFT RGB Touch Display Module. Boasting a crystal-clear 640×480 resolution, this dynamic display promises a feast for the eyes with its vivid colors and sharp imagery.
Equipped with a versatile RGB interface, this display seamlessly integrates into a variety of applications, from embedded systems to medical equipment, and from industrial devices to security setups. Whether you’re navigating through GPS maps or monitoring critical data, our display ensures uncompromising performance and clarity.
Designed for durability and reliability, the SF-TC560I-9270B-T operates flawlessly in temperatures ranging from -20℃ to +70℃, making it suitable for diverse environments. With a storage temperature range of -30℃ to +80℃, rest assured that your display remains ready for action whenever you need it.
Experience unparalleled brightness with 280 cd/m2 (typical value), illuminating every detail with precision. Plus, its TN-LCD type ensures optimal viewing from any angle, making it ideal for both indoor and outdoor applications.
Fully compatible with the renowned Innolux model AT056TN53V.1, our TFT display sets the standard for excellence in visual technology. Elevate your projects with captivating visuals and unmatched performance – choose Techstar’s SF-TC560I-9270B-T for your display needs.
Product Features
| Keywords: | 5.6 Inch TFT LCD Display |
|---|---|
| Touch Screen: | Resistive Touch Panel |
| Resolution: | 640×480 |
| Cover Glass Dimension: | ODM |
| Interface: | RGB |
| Surface Luminance: | 280 Cd/m2 |
| LED Lifetime: | 40,000 Hours |
| Pins: | 40 |
| Viewing Direction: | 6 O’clock |
| Compliance: | REACH & RoHS Compliant |

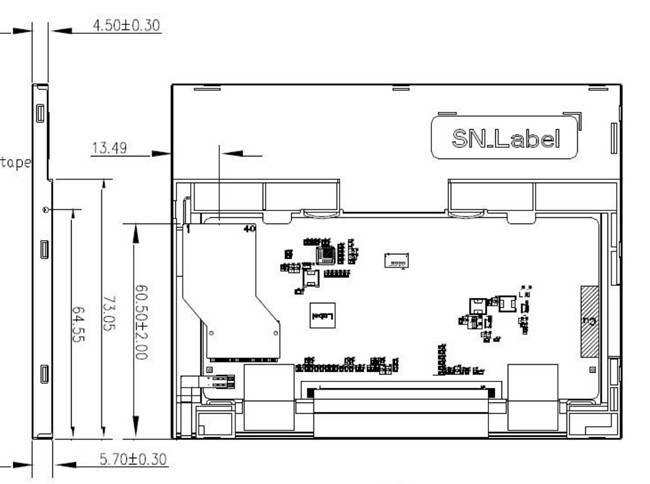

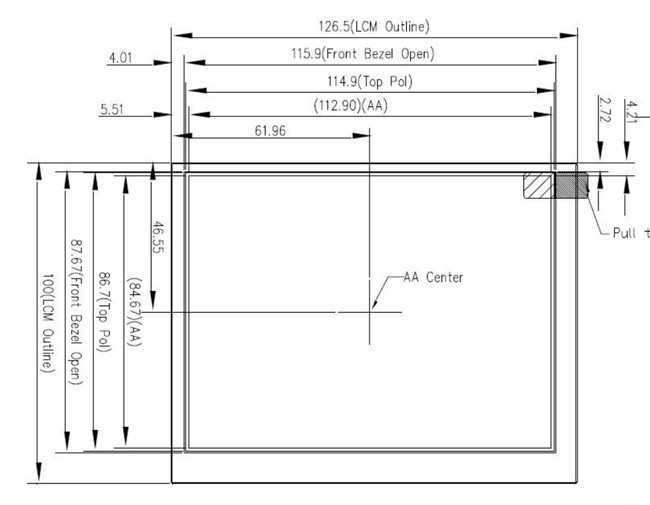

Industrial Grade 5.6 inch Resistive Touchscreen TFT LCD Display Module Drawing
Backlight Electrical-optical Characteristics
| Item | Symbol | MIN | TYP | MAX | UNIT | Test
Condition |
| Supply Voltage | Vf | 8.4 | 9.3 | 10.5 | V | If=110 mA |
| Supply Current | If | 90 | 100 | 110 | mA | – |
| Reverse Voltage | Vr | – | – | 5 | V | – |
| Power dissipation | Pd | – | 930 | – | mW | – |
| Luminous Intensity for LCM |
– |
250 | 280 | – | Cd/m2 | If=110 mA |
| Uniformity for LCM | – | 70 | 75 | – | ï¼… | Â Â If=110 mA |
| Backlight Color | White | |||||
Reliability Test
| Item | Condition | Time (hrs) | Assessment |
| High temp. Storage | 80°C | 120 |
No abnormalities in functions and appearance |
| High temp. Operating | 70°C | 120 | |
| Low temp. Storage | -30°C | 120 | |
| Low temp. Operating | -20°C | 120 | |
| Humidity | 60°C/ 90%RH | 120 | |
| Thermal Shock Temp. Cycle | -20°C ¬ 25°C ®70°C
(0.5 hour ¬ 5 min ® 0.5 hour) |
10cycles | |

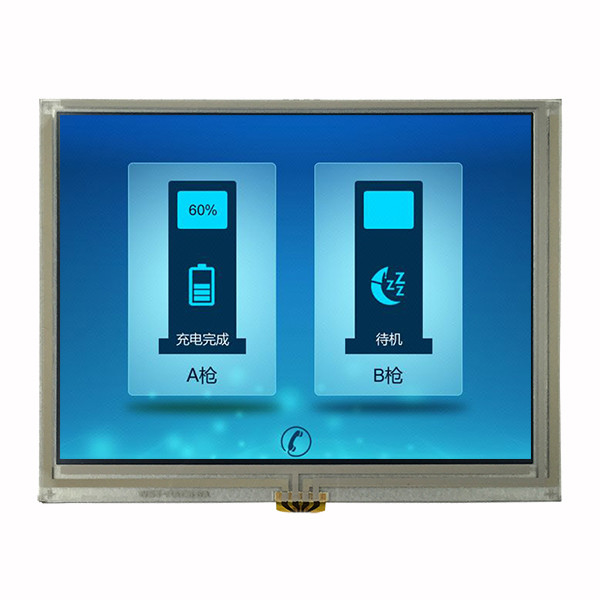

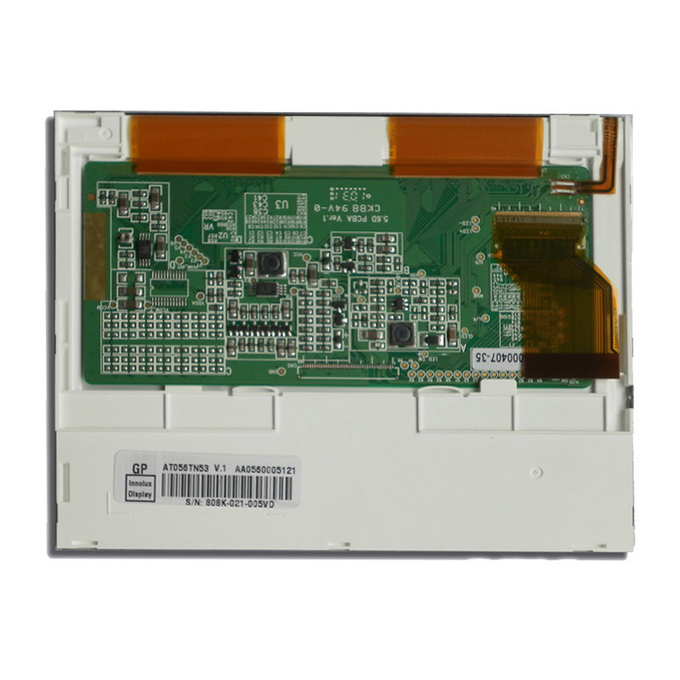

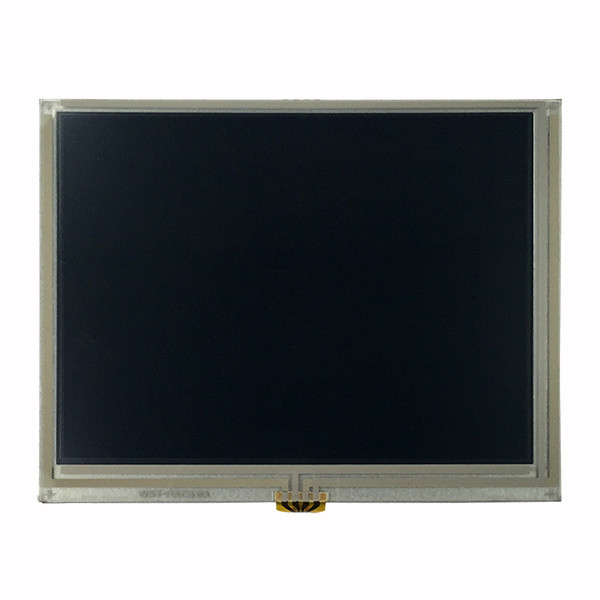

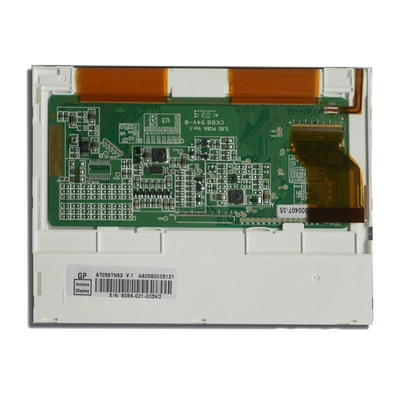

Industrial Grade 5.6 inch Resistive Touchscreen TFT LCD Display Module Image
