Unveiling the Cutting-Edge: 1.8 Inch Industrial TFT Display 128×160 Dots MCU 16 Bit Interface
Welcome to the realm of innovation with the SFTC177H-8685A-N TFT LCD module, a marvel boasting a generous 1.77” (or 1.8″) diagonal expanse, presenting a crisp resolution of 128×160 dots, delivering a spectrum of vibrant colors in every frame. This dynamic module beckons with its versatility, accommodating both 8-bit and 16-bit MCU Interfaces, ensuring seamless integration across platforms.
In dimensions measuring 34.7 x 47 x 2.6 mm, and an active area spanning 28.03 x 35.04 mm, the SFTC177H-8685A-N stands as a testament to compact engineering prowess, offering a perfect synergy of form and function.
Powered by the robust ILI9163V controller, this module thrives within a logic supply voltage spectrum of 3.0V to 3.6V, demonstrating resilience across a wide temperature range, from the frosty -20℃ to a scorching +70℃, with storage capabilities extending from -30℃ to +80℃.
Embrace brilliance with a luminance of 300 cd/m2, illuminating your projects with unparalleled clarity. Should your creative vision demand luminance adjustments, our expert technical support stands ready to cater to your needs, ensuring a tailored experience. Delve deeper into customization possibilities, where the choice between a resistive touch screen (RTP) or capacitive touch screen (CTP) awaits, offering boundless avenues for innovation and user engagement.
Product Features:
| Product: | 1.8″ Inch TFT LCD |
| Resolution: | 128×160 Dots |
| Interface: | MCU 8 / 16 Bits |
| Cover Glass Dimension: | Customizable |
| Connection: | Soldering Type |
| LED Lifetime: | 40,000 Hours |
| Touch Screen: | Without Touch Screen |
| Outline Dimension: | 34.7 X 47 X 2.6 (mm) |
| Viewing Direction: | 12:00 |
| Pin Number: | 28 Pins |
| Surface Luminance: | 300 Cd/m2(nits) |
| Compliance: | REACH & RoHS Compliant |

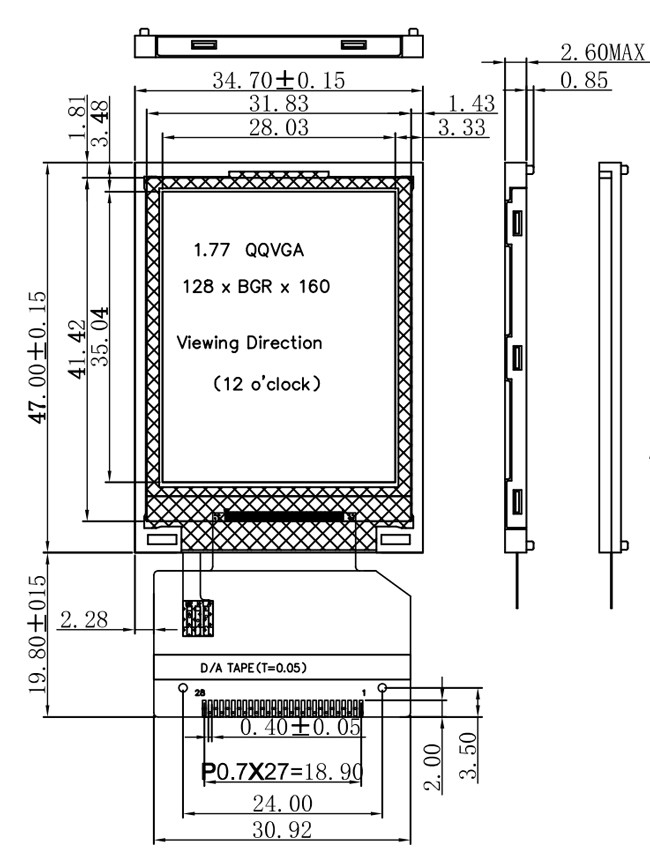

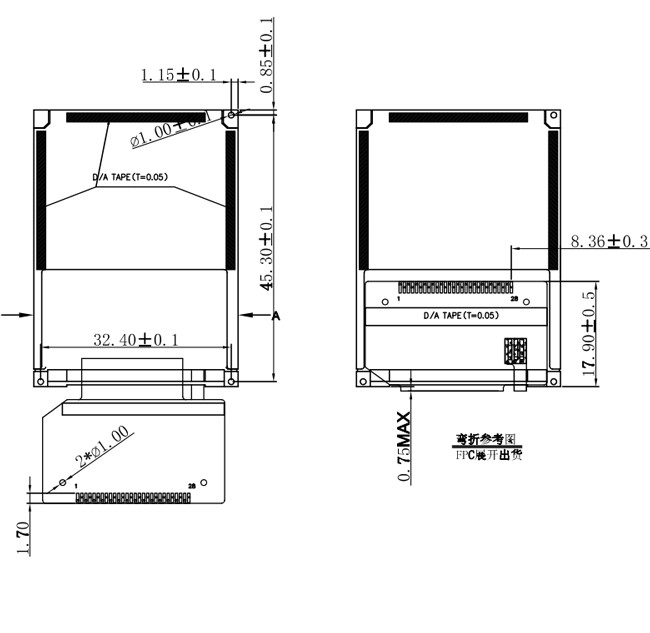

1.8 Inch / 1.77 Inch TFT LCD 128×160 Dots MCU Interface Product Drawing
1.77 inch MCU Interface Pin Definition
| NO. | PIN NAME | Description |
| 1 | GND | Ground |
| 2 | VDD | Power Supply 2.8V Voltage |
| 3 | CS | Input pin for chip selection signal |
| 4 | RESET | LCM Reset input signal |
| 5 | RS | Register select signal |
| 6 | WR | Write strobe signal input pin |
| 7 | RD | Read strobe signal input pin |
| 8-23 | DB0-DB15 | Display Data I/O |
| 24 | LEDA | LED Anode |
| 25 | LEDK1 | LED Cathode |
| 26 | NC | – |
| 27 | LEDK2 | LED Cathode |
| 28 | IM0 | The MCU interface mode select. |
DC Characteristics (VDD=2.8V,Ta=25°C)
| Item | Symbol | Min | Type | Max | Unit | Test condition |
| Operating voltage | VDD | 2.6 | 2.8 | 3.3 | V | – |
| Supply current | IDD | – | – | 5 | mA | VDD=2.8V,Ta=25°C |
| Input voltage | VIH | 0.8VDD | – | VDD | V | – |
| VIL | 0 | – | 0.2VDD | V | ||
| Input leakage current | IIL | -1.0 | – | 1.0 | mA | VIN=VDD or VSS |

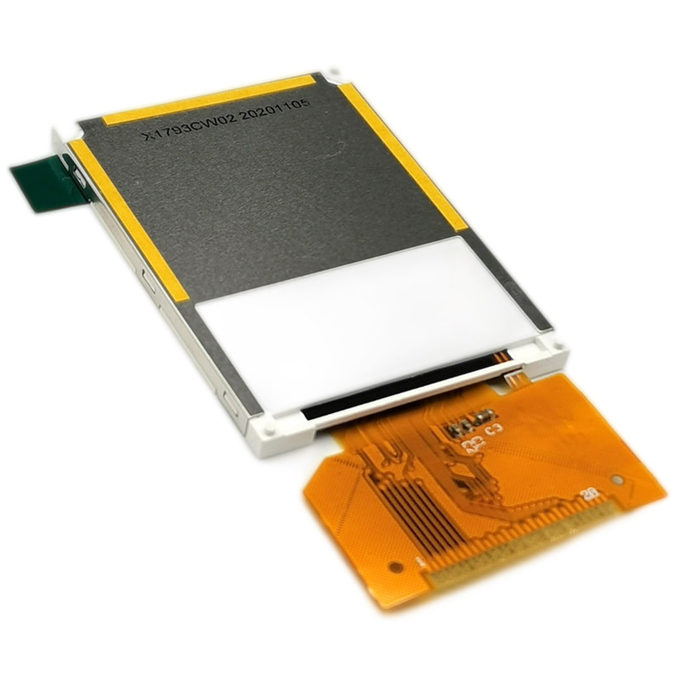

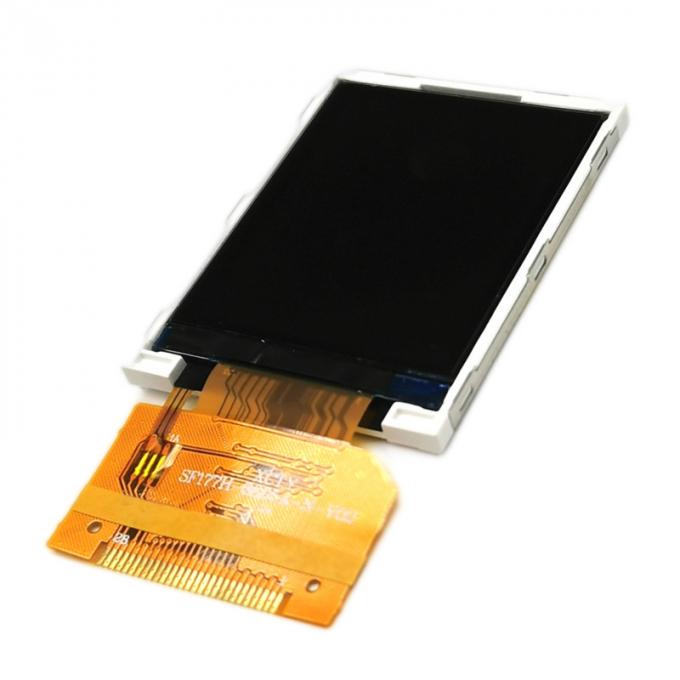

1.8 Inch / 1.77 Inch TFT LCD 128×160 Dots MCU Interface Product Image
Projected Capacitive (PCAP) Touch Screen
