8 inch TFT LCD 1024×768 dots LVDS Interface Product Introduction
Product Quick Insights:
- Model No. SF-TO800I-8833A-N
- 8 inch TFT LCD, Industrial TFT Display 8″
- Resolution: 1024*768
- Interface: LVDS
- Viewing Angles: all
- Touchscreen: without
Description:
Introduce our 8-inch TFT LCD display module, named SF-TO800I-8833A-N, with a resolution of 1024 x 768. It uses an innovative LVDS interface to unleash your creativity in various applications, from medical devices to industrial devices, from embedded systems to security settings, and more. This display module is designed using IPS technology to ensure a wide viewing angle of 80/80/80, ensuring that every detail is clearly visible from any angle.
The brightness Industrial TFT Display SF-TO800I-8833A-N is 250 cd/m2 (typical value), and the visual effect is lifelike. This module has been carefully designed to withstand various harsh environments and operates perfectly in the temperature range of -20 ℃ to+70 ℃, with storage capacity ranging from -30 ℃ to+80 ℃.
Product Features:
| Keywords: | 8″ Inch TFT |
|---|---|
| Touch Screen: | Without Touch Panel |
| Resolution: | 1024×768 |
| Cover Glass Dimension: | Can Be Newly Designed |
| Interface: | LVDS |
| Surface Luminance: | 250 Cd/m2 |
| LED Lifetime: | 40,000 Hours |
| Pins: | 40 |
| Viewing Direction: | IPS, All Viewing Angles (80/80/80/80) |
| Compliance: | REACH & RoHS Compliant |

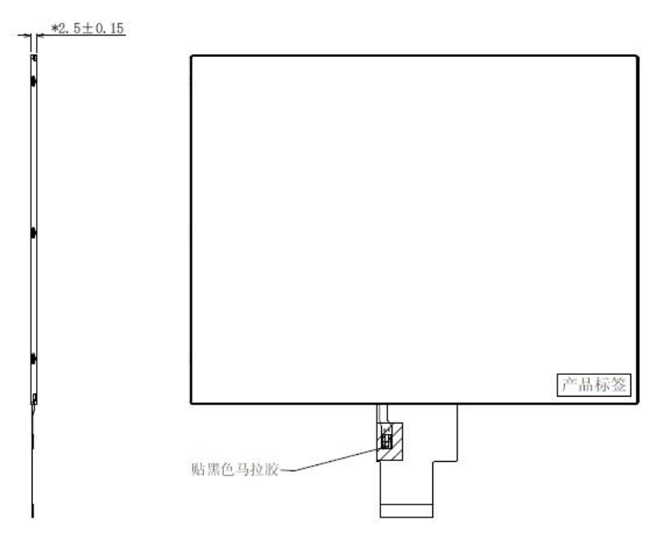

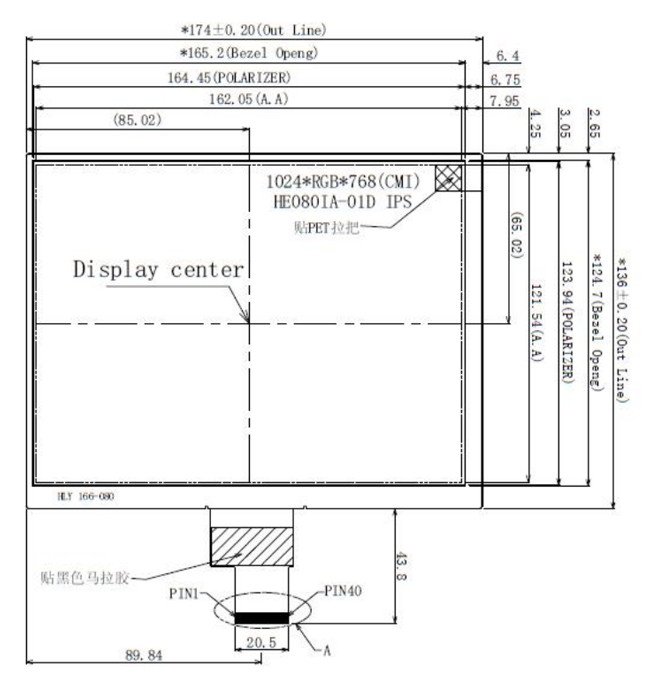

8 inch TFT LCD 1024×768 dots LVDS Interface Product Drawing
DC Characteristics (VDD=2.8V,Ta=25°C)
| Item | Symbol | Min | Type | Max | Unit | Test condition |
| Operating voltage | VDD | 9.8 | 10 | 10.2 | V | – |
| Supply current | IDD | – | 25 | 40 | mA | VDD=2.8V,Ta=25°C |
| Input voltage | VIH | 0.8VDD | – | VDD | V | – |
| VIL | 0 | – | 0.2VDD | V | ||
| Input leakage current | IIL | -10 | – | +10 | uA | VIN=VDD or VSS |
Reliability Test
| Item | Condition | Time (hrs) | Assessment |
| High temp. Storage | 80°C | 120 |
No abnormalities in functions and appearance |
| High temp. Operating | 70°C | 120 | |
| Low temp. Storage | -30°C | 120 | |
| Low temp. Operating | -20°C | 120 | |
| Humidity | 60°C/ 90%RH | 120 | |
| Thermal Shock Temp. Cycle | -20°C ¬ 25°C ®70°C
(0.5 hour ¬ 5 min ® 0.5 hour) |
10cycles | |

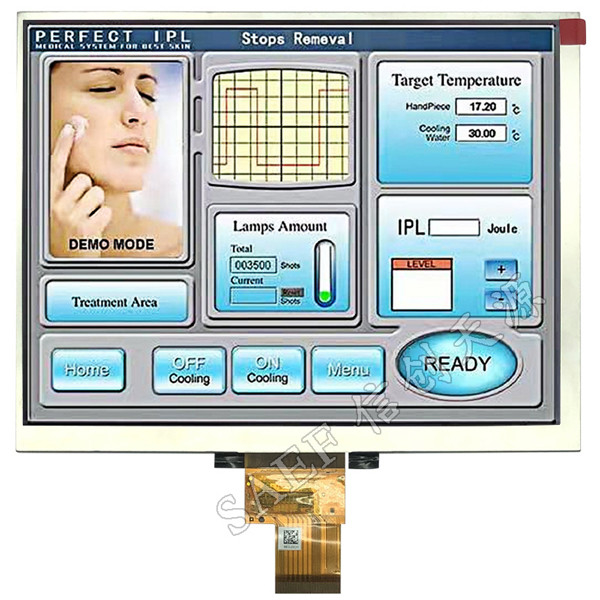

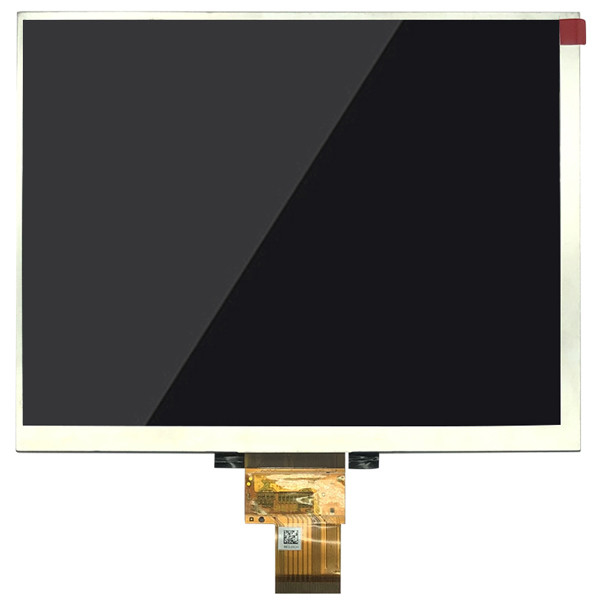

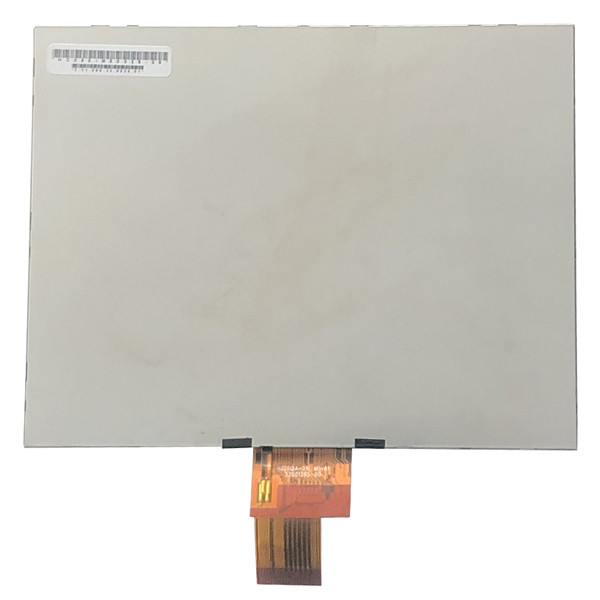

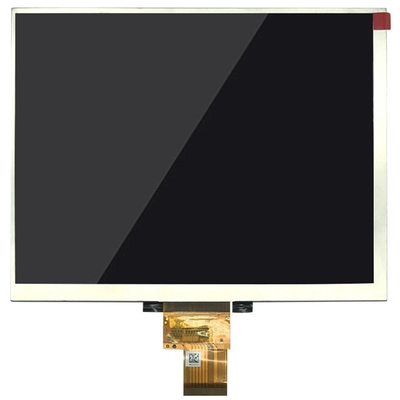

8 inch TFT LCD 1024×768 dots LVDS Interface Product Image
