Description
1.9-inch Touch Screen TFT LCD
The SHENZHEN TECHSTAR ELECTRONICS INCORPORATED CO., LTD Â SF-TC190ASJ-8977A-CT TFT LCD display module is a transmissive type color active matrix TFT (Thin Film Transistor) liquid crystal display (LCD) that utilizes amorphous silicon TFT as a switching device. This module comprises a TFT LCD module, a driver circuit, and a backlight unit. PPI (Pixel Per Inch) refers to Pixels Per Inch, with the resolution of a 1.9-inch screen containing 170 (RGB) x 320 dots (170 horizontal by 320 vertical pixels array) and capable of displaying up to 262k colors. The SF-TC190ASJ-8977A-CT TFT LCD model supports SPI and RGB interfaces; the supply voltage (VCC) for driving the LCD panel ranges from 2.4V to 3.3V, with a typical value of 2.8V. It can be utilized in embedded systems, automation, GPS, medical equipment, industrial devices, and security equipment requiring TFT displays for high-quality and colorful imagery.
SF-TC190ASJ-8977A-CT is an IPS-LCD type TFT with a brightness of 330 cd/m2 (typical value). The brightness can be customized to achieve 1000 nits. Please contact our sales team for more details. It can operate at temperatures ranging from -20℃ to +70℃, with storage temperatures ranging from -30℃ to +80℃.
Why Opt for Us
- Tailored LCD Display Solutions
Do your products demand specific application requisites, electrical or optical specifications, touch functionalities, or mechanical dimensions that necessitate customized displays? Look no further. SHENZHEN TECHSTAR ELECTRONICS INCORPORATED CO., LTD Â is equipped to fulfill your bespoke LCD needs.
- Comprehensive Touch Screen and Display Solutions
Concerned about integrating touch screens and display screens seamlessly? SHENZHEN TECHSTAR ELECTRONICS INCORPORATED CO., LTD Â offers both custom and standard touch screens, including Resistive and Capacitive multi-touch solutions, along with air & optical bonding services.
- Unwavering Commitment to Quality and Reliability
SHENZHEN TECHSTAR ELECTRONICS INCORPORATED CO., LTD Â holds certifications from ISO9001:2015 and ISO14000, ensuring compliance with RoHS, REACH, and other global environmental regulations. We uphold quality standards through rigorous IQC, PQC, and OQC management, coupled with reliability and aging testing.
- Sustainable Long-Term Supply
Typically, our recommended products maintain a supply continuity exceeding 5 years. Should special requirements arise, we proactively devise contingency plans to safeguard your long-term supply needs.
Product Features
| Product: | 1.9 inch TFT |
| Resolution: | 170 X 320 |
| Interface: | SPI / RGB |
| Touch Screen: | Capacitive Touch Panel (CTP) |
| Viewing Direction: | IPS Full Viewing Angle(80/80/80/80) |
| Outline Dimension: | 25.8 X 49.72 X 1.43 Mm |
| Active Area: | 42.72 X 22.7 Mm |
| Pin Number: | 30 Pins |
| Surface Luminance: | 350 Cd/m2 (nits) |
| Driver IC: | ST7789V Or Equivalent |
| Connection: | Plugging (can Be Customized) |
| LED Lifetime: | 40,000 Hours |
| Operating Temp.: | –20℃ To +70℃ |
| Compliance: | REACH & RoHS Compliant |

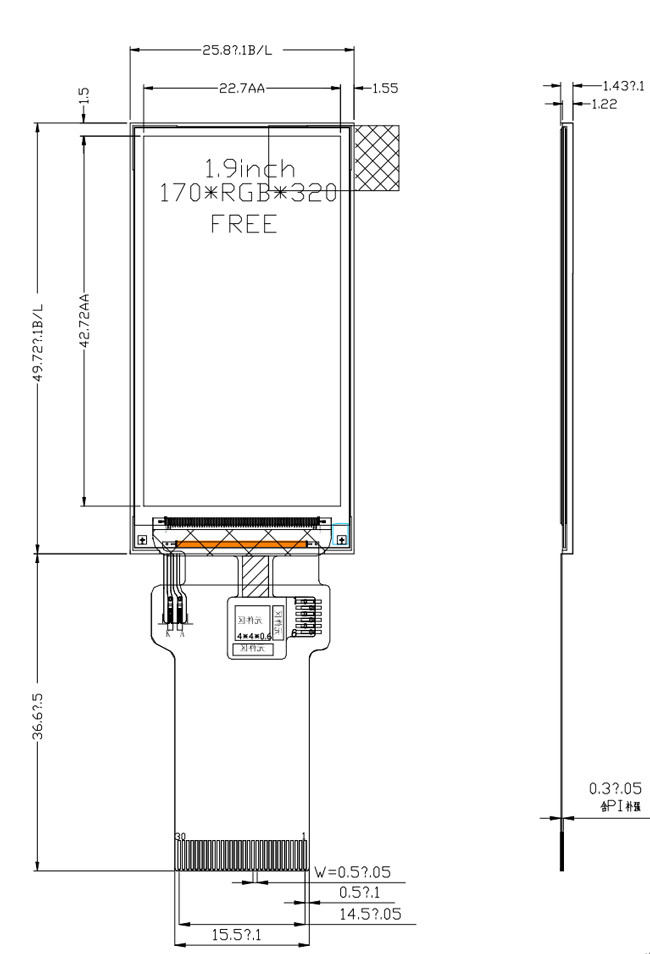

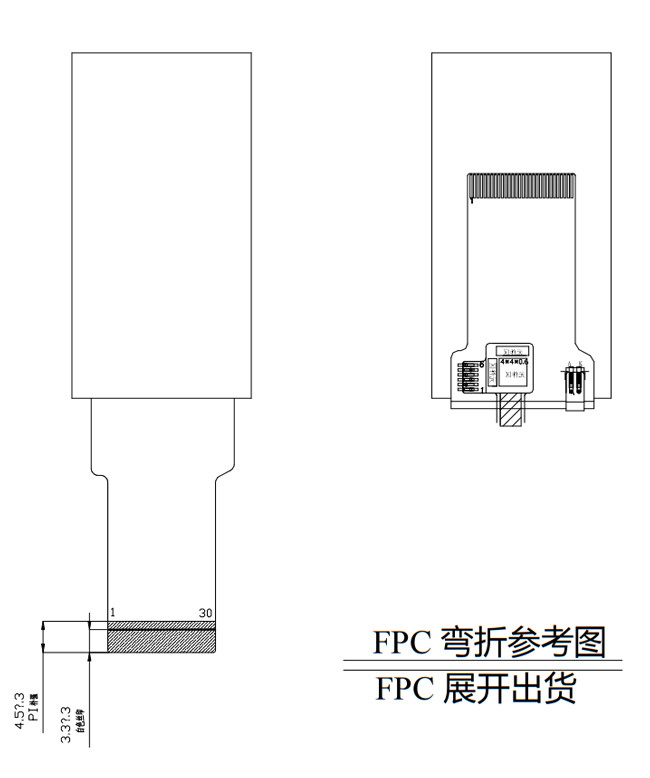

1.9″ inch Touchscreen TFT, TFT LCD 1.9″ Product DrawingÂ
Interface Pin Description
| NO. | PIN NAME | I/O | Description |
| 1Â | GND | I | Power Ground |
| 2 | VDD | I | Power Supply for Analog, VDD=2.4V~3.3V. |
| 3 | IM2 | I | when IM1=0, IM2=0，8080-8bit;when IM1=1, IM2=1，4-line SPI serial I/F. |
| 4 | IM1 | I | |
| 5 | RESET | I | This signal will reset the device and it must be applied to properly initialize the chip. Signal is active low. |
| 6Â | CS | I | Chip selection pin; Low enable, High disable. |
| 7Â | D/C(SPI-SCL) | I | When connecting to an 8080-series microprocessor, this pin receives the data/command selection pin. This pin is used to be serial interface clock in 4-line serial interface. |
| 8Â | WR(SPI-RS)
（SPI-RS） |
I | When connecting to an 8080-series microprocessor, this pin receives the write signal. Display data/command selection pin in 4-line serial interface. |
| 9 | RD | I | When connecting to an 8080-series microprocessor, this pin receives the Read signal. Read operation is initiated when this pin is pulled LOW and the chip is selected. When serial interface is selected, this pin must be connected to Ground. |
| 10 | SDA | I | SPI interface input/output pin. The data is latched on the rising edge of the SCL signal. |
| 11-18 | D0-D7 | I | MCU parallel interface data bus. |
| 19 | NC | I | No Connect |
| 20 | LEDA | I | LED Anode |
| 21-24 | LEDK1 | I | LED Cathode |
| 25 | GND | I | Power Ground |
| 26 | TP_RST | I | System reset of Touch Panel. If no used, let this pin open. |
| 27 | TP_SCL | I | I²C clock signal of Touch Panel. If no used, let this pin open. |
| 28 | TP_SDA | I | I²C data signal of Touch Pane. If no used, let this pin open. |
| 29 | TP_INT | I | Interrupt signal to main processor of Touch Panel. If no used, let this pin open. |
| 30 | GND | I | Power Ground |
| Â | Â |

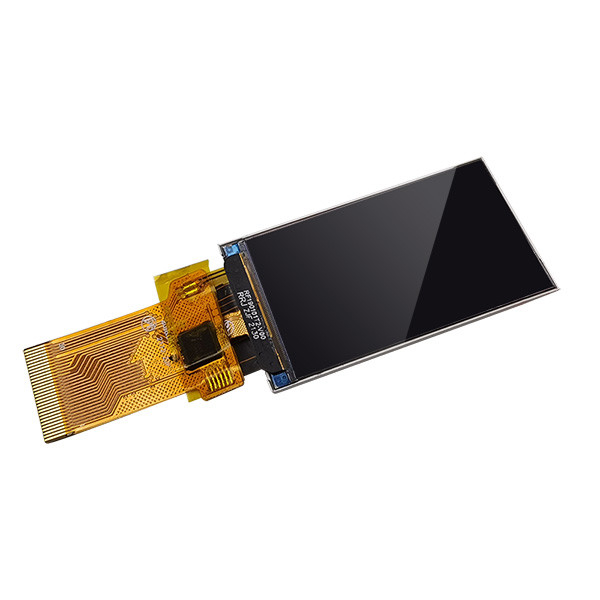

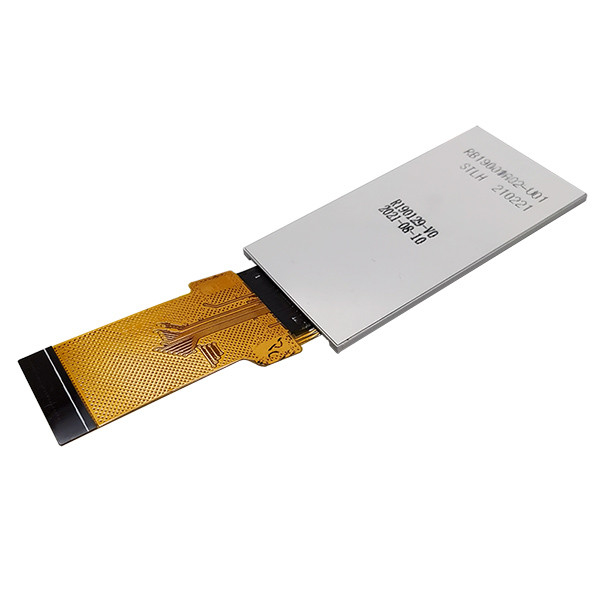

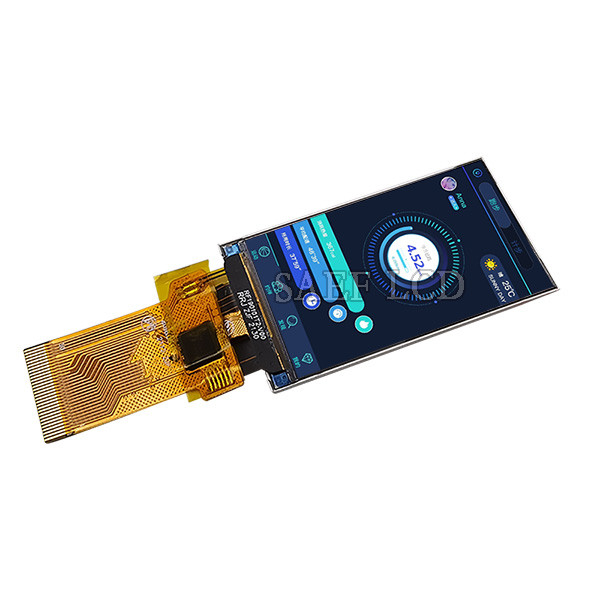

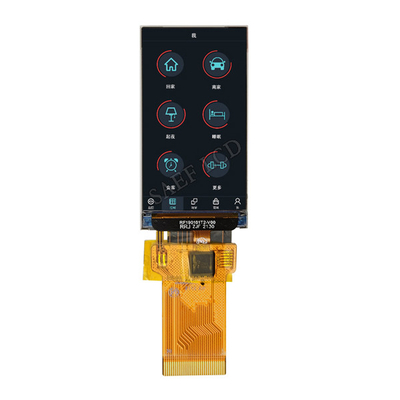

1.9″ inch Touchscreen TFT, TFT LCD 1.9″ Product ImageÂ
