Description
The Techstar’s SF-TC200L-8455B-N is a 2.0-inch portrait type IPS TFT LCD Display, boasting a resolution of 240×320 pixels.
This SF-TC200L-8455B-N full view LCD display is a compact and reliable LCD panel. it’s outline dimension of 38.5 x 52.05 x 2.6mm, visible area of 30.6 (W) x 40.8 (H) mm. This 2 inch IPS display is driven by the ST7789 driver IC, the displays diagonal size is 2.0 inches. The brightness of this small LCD panel is 300 Cd/m2. In addition, the aspect ratio of 4:3 makes it suitable for various applications. If you are looking for a small LCD screen or small LCD monitor, this IPS LCD display is your ideal choice.
Elevate Your Display Experience
Unleash the potential of this cutting-edge 2.0” TFT LCD module across a spectrum of applications, from black boxes and smart wearables to mobile POS systems, cash readers, and GPS handheld phones. It seamlessly integrates into handheld food ordering machines, signal analyzers, benchtop laboratory equipment, security systems, home automation devices, mini audio players, baby monitors, and various other handheld innovations.
Key Features
Immersive IPS Full Viewing Angle: Enjoy a wide viewing angle of 80/80/80/80, making it perfect for diverse applications, whether mounted on top, placed on a table, or used handheld.
Exceptional Display Performance: Revel in outstanding background color, luminance, viewing angle, and intensity, ensuring a superior visual experience.
Industrial and Medical Grade Quality: Engineered for excellence, this LCD module meets high-quality standards suitable for industrial and medical applications.
Customization Options: Choose between a resistive touch screen or none. Tailor your experience further with our support for designing customized CTP (capacitive touch panels) and customizable FPC (flexible printed circuit).
Competitive Pricing with Uncompromised Quality: Our solution offers a price-competitive edge without compromising on quality, setting new standards in the LCD industry.
Ease of Installation and Maintenance: Experience hassle-free installation and maintenance, ensuring seamless integration into your projects.
Product Information
| Product: | 2.0″ TFT LCD |
| Resolution: | 240×320 Dots |
| Interface: | SPI+RGB Interface |
| Connection: | FPC Type Connection |
| Operating Temp.: | -20℃ To +70℃ |
| Touch Screen: | Without Touch Screen |
| Viewing Direction: | ALL |
| Pin Number: | 26 Pins |
| Surface Luminance: | 250 Cd/m2 |
| Compliance: | REACH & RoHS Compliant |
2 Inch TFT LCD Display IPS Mode (All Viewing Angles) Product Drawing
Interface Pin Definition
| NO. | PIN NAME | I/O | Description |
| 1-2 | LEDA | I | LED Anode |
| 3 | NC | – | – |
| 4-6 | LEDK | I | LED Cathode |
| 7-8 | GND | I | Ground |
| 9 | FMARK | I | Tearing effect output pin |
| 10-11 | GND | I | Ground |
| 12 | RESET | I | LCM Reset input signal |
| 13 | CS | I | Input pin for chip selection signal |
| 14 | SCL | I | SPI Clock Signal |
| 15 | VSYNC | I | Vertical Synchronizing Signal |
| 16 | HSYNC | I | Horizontal Synchronizing Signal |
| 17 | ENABLE | I | Input Data enable control |
| 18 | DOTCLK | I | Clock Signal to Sample each date |
| 19-20 | GND | I | Ground |
| 21-26 | R5-R0 | I/O | Display Data I/O (R5-R0) |
| 27-28 | GND | I | Ground |
| 29-34 | G5-G0 | I/O | Display Data I/O (G5-G0) |
| 35-36 | GND | I | Ground |
| 37-42 | B5-B0 | I/O | Display Data I/O (B5-B0) |
| 43-44 | GND | I | Ground |
| 45 | SDI | I | SPI Interface Input Pin |
| 46 | SDO | I | Read strobe signal input pin |
| 47-48 | GND | I | Ground |
| 49 | IOVCC | I | Power Supply 2.8V/1.8V Voltage |
| 50-51 | VCC | I | Power Supply 2.8V Voltage |
Maximum Absolute Limit
| Item | Symbol | Value | Unit |
| Power supply voltage for logic | VDD | 1.6~3.3 | V |
| Input voltage | Vin | VDD+0.3 | V |
| Operating temperature | Topr | -20 to 70 | °C |
| Storage temperature | Tstg | -30 to 80 | °C |
DC Characteristics (VDD=2.8V,Ta=25°C)
| Item | Symbol | Min | Type | Max | Unit | Test condition |
| Operating voltage | VDD | * | 2.8 | 3.3 | V | – |
| Supply current | IDD | – | – | 20 | mA | VDD=2.8V,Ta=25°C |
| Input voltage | VIH | 0.8VDD | – | VDD | V | – |
| VIL | 0 | – | 0.2VDD | V | ||
| Input leakage current | IIL | -1.0 | – | 1.0 | mA | VIN=VDD or VSS |
Backlight Electrical-optical Characteristics
| Item | Symbol | MIN | TYP | MAX | UNIT | Test
Condition |
| Supply Voltage | Vf | 9.2 | 9.6 | 9.8 | V | If=20 mA |
| Supply Current | If | – | 20 | – | mA | – |
| Reverse Voltage | Vr | – | – | 5 | V | – |
| Power dissipation | Pd | – | 192 | – | mW | – |
| Luminous Intensity for LCM |
– |
– | 250 | – | Cd/m2 | If=20mA |
| Uniformity for LCM | – | 80 | – | – | ％ | If=20 mA |

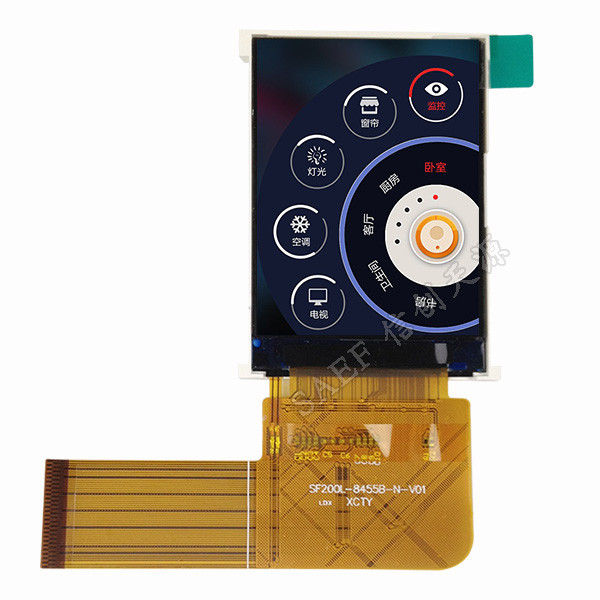

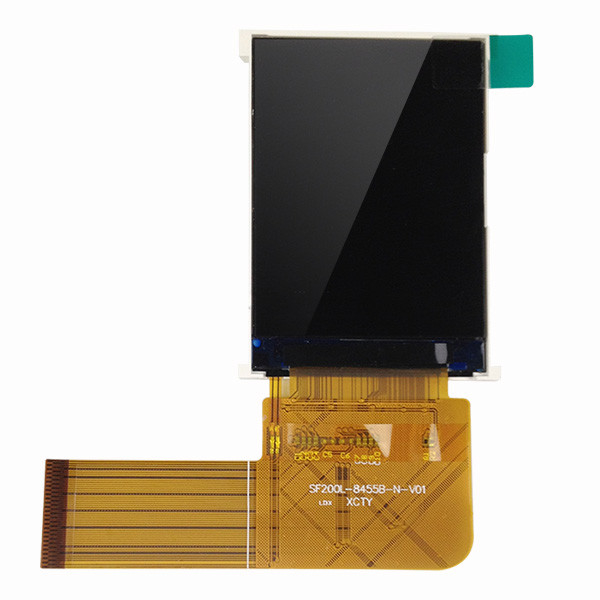

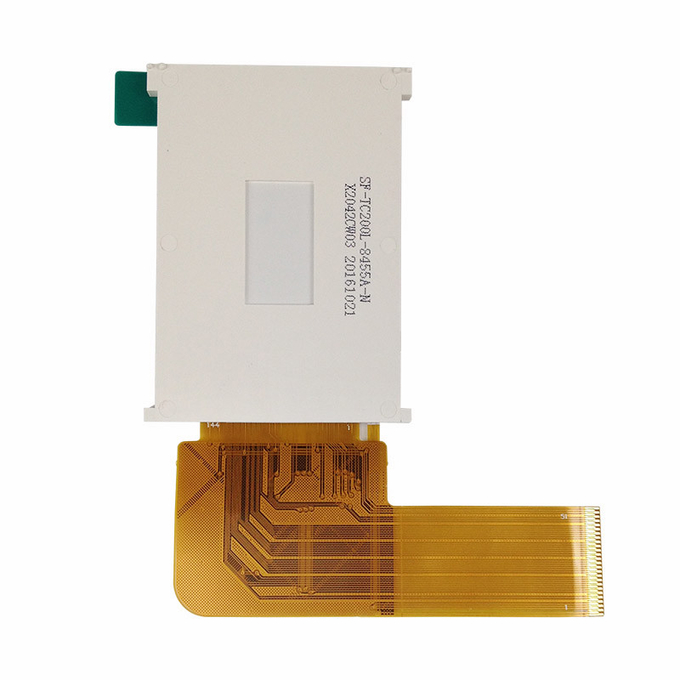

2 Inch TFT LCD Display IPS Mode (All Viewing Angles) Product Image
