Unlocking Your Display Potential: Introducing the TFT LCD 2.8″ Inch All-Viewing Angle 240×320 IPS Display
Experience brilliance with our SF-TC280B-9750B-N TFT LCD, a 2.8-inch marvel boasting IPS technology for unparalleled viewing angles and a crisp resolution of 240xRGBx320. Powered by the advanced ILI9341V IC, this display supports a versatile range of interfaces including MCU/SPI/RGB, ensuring seamless integration into your projects. With a compact module dimension of 50.0 x 69.2 mm and an active area size of 43.2 x 57.6 mm, it’s designed to fit snugly into various applications.
Not just a portrait mode wonder, the SF-TC280B-9750B-N offers flexibility. Contact us for expert guidance on utilizing it in landscape mode. Featuring a luminance of 280-350 cd/m2, it thrives in temperatures ranging from -20℃ to +70℃, with storage capabilities from -30℃ to +80℃. From signal analyzers to home automation systems, this 2.8″ TFT LCD Module is the epitome of versatility, ideal for a myriad of hand-held devices and beyond.
Product Features
| Product: | 2.8 Inch TFT Display |
|---|---|
| Touch Screen: | Without Touch Screen |
| Resolution: | 240*320 |
| Cover Glass Dimension: | Customizable |
| Viewing Direction: | All |
| Interface: | MCU/SPI/RGB |
| Pin Number: | 40 Pins |
| Connection: | FPC ZIP Connector |
| Surface Luminance: | 250 Cd/m2 |
| LED Lifetime: | 40,000 Hours |
| Driver IC: | ILI9341V |
| Compliance: | REACH & RoHS Compliant |

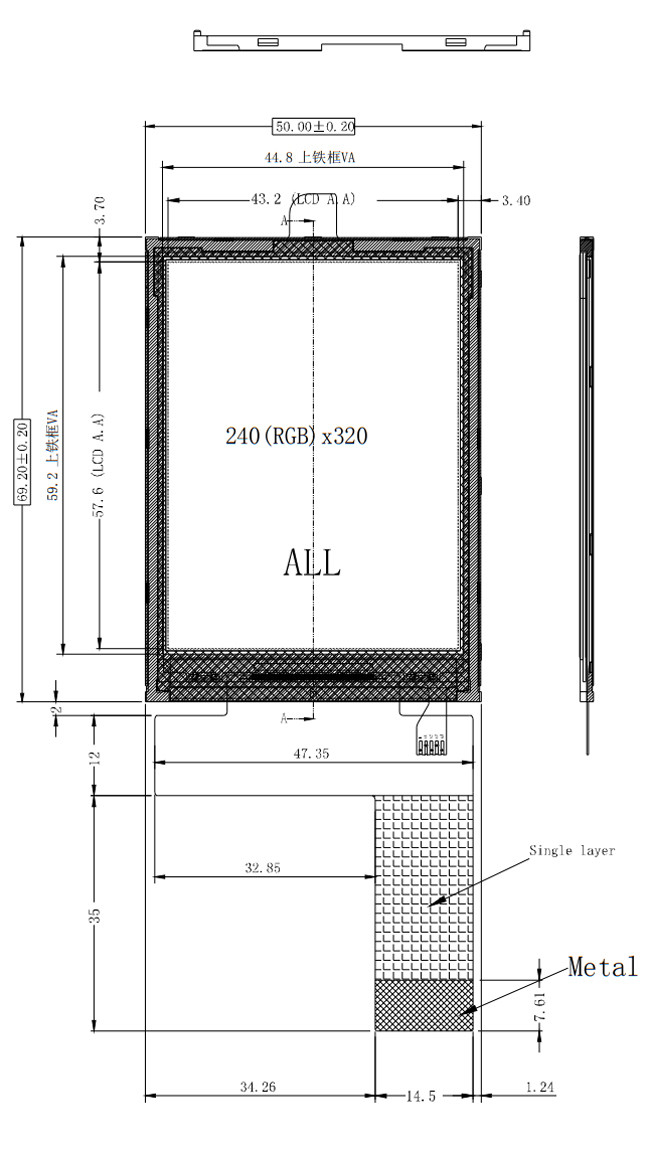

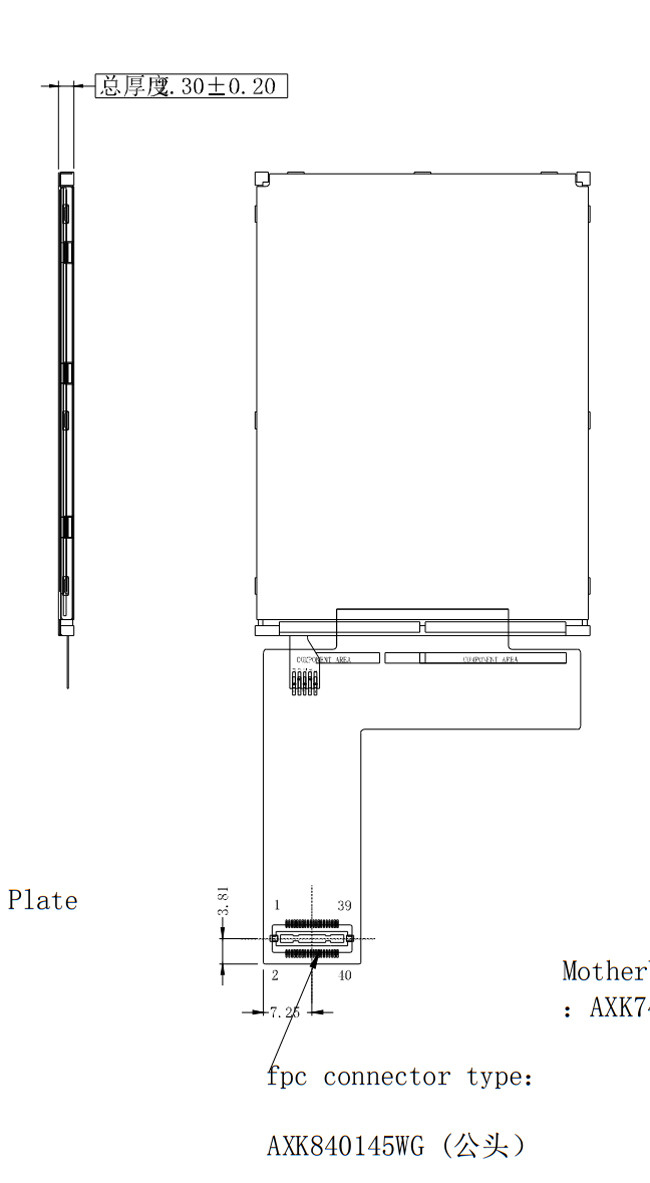

2.8″ Inch IPS TFT LCD Display Product Drawing
Interface Pin Definition
| NO. | PIN NAME | I/O | Description |
| 1 | GND | P | Ground |
| 2 | GND | P | Ground |
| 3 | GND | P | Ground |
| 4 | VCC | I/O | Power Supply 3.3V Voltage |
| 5 | VCC | I/O | Power Supply 3.3V Voltage |
| 6 | VCC | I/O | Power Supply 3.3V Voltage |
| 7 | /RESET | I | LCM Reset input signal |
| 8 | /CS | I | Input pin for chip selection signal |
| 9 | RS_SCL | I | |
| 10 | VSYNC | I | Vertical Synchronizing Signal |
| 11 | HSYNC | I | Horizontal Synchronizing Signal |
| 12 | ENABLE | I | Data Enable Signal for RGB I/F |
| 13 | DOTCLK | I | Clock Signal to Sample each date |
| 14 | SDI | I/O | |
| 15-32 | DB0-DB17 | I/O | RGB Display Data I/F:
R[5:0] :DB[17:12]; G[5-0] :DB[11:6] B[5-0] :DB[5:0]; |
| 33-34 | LED-K | O | LED Cathode |
| 35 | LED-A1 | O | LED Anode |
| 36 | LED-A2 | O | LED Anode |
| 37 | LED-A3 | O | LED Anode |
| 38 | LED-A4 | O | LED Anode |
| 39 | GND | P | Ground |
| 40 | GND | P | Ground |
Maximum Absolute Limit
| Item | Symbol | Value | Unit |
| Power supply voltage for logic | VDD | Â Â Â Â Â Â Â Â 1.6~3.3 | V |
| Input voltage | Vin | VDD+0.3 | V |
| Operating temperature | Topr | -20 to 70 | °C |
| Storage temperature | Tstg | -30 to 80 | °C |
| Â |
DC Characteristics (VDD=1.65V-3.3V,Ta=25°C)
| Item | Symbol | Min | Type | Max | Unit | Test Condition |
| Operating voltage | VDD | 2.6 | – | 3.6 | V | – |
| Supply current | IDD | – | – | 5 | mA | VDD=2.8V,Ta=25°C |
| Input voltage | VIH | 0.8VDD | – | VDD | V | – |
| VIL | 0 | – | 0.2VDD | V | ||
| Input leakage current | IIL | -1.0 | – | 1.0 | mA | VIN=VDD or VSS |
Backlight Electrical-optical Characteristics
| Item | Symbol | MIN | TYP | MAX | UNIT | Test
Condition |
Note |
| Supply Voltage | Vf | 3.0 | 3.2 | 3.6 | V | If=80Â mA | – |
| Supply Current | If | – | 80 | – | mA | – | – |
| Reverse Voltage | Vr | – | – | 5 | V | – | |
| Power dissipation | Pd | – | 288 | – | mW | – | |
| Luminous Intensity for LCM | Â
– |
160 | 250 | – | Cd/m2 | If=80mA | – |
| Uniformity for LCM | – | 80 | – | – | ï¼… | Â Â Â If=80Â mA | – |
| Backlight Color | White | ||||||
| Â | |||||||

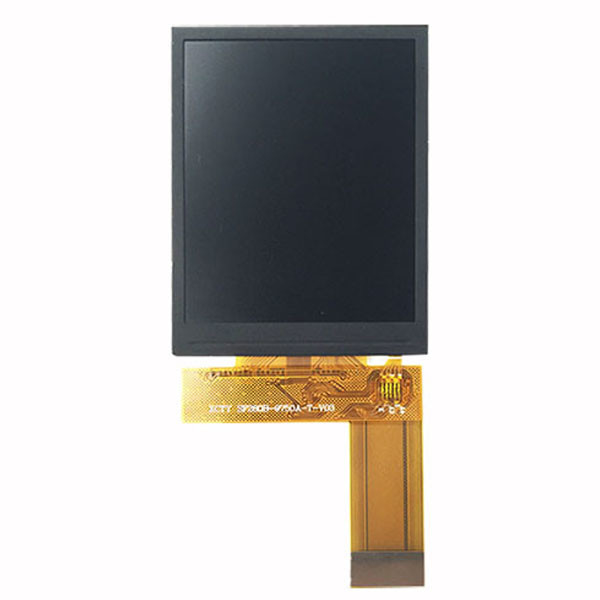

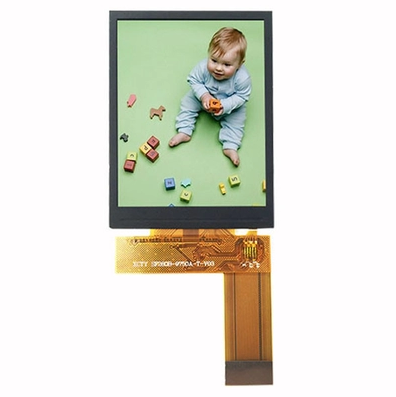

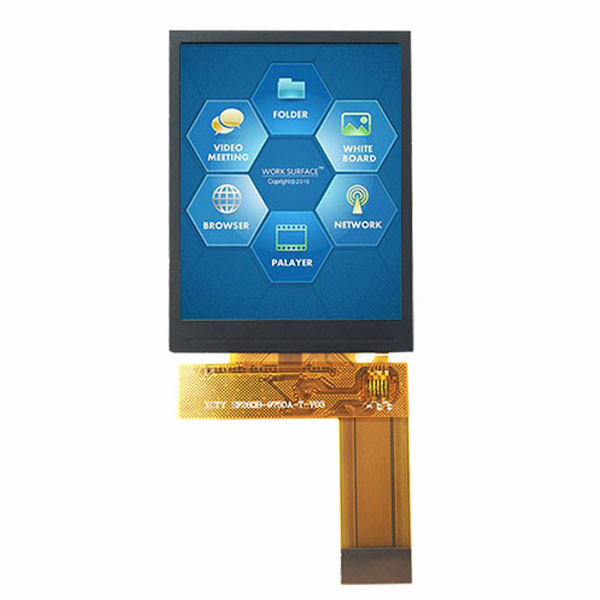

2.8″ Inch IPS TFT LCD Display Product Image
