Description
Introducing the SF-TC240H-8944B-T, a pinnacle in TFT LCD modules. At a diagonal size of 2.4 inches and a vibrant 240xRGBx320 QVGA display, it enchants with full-color brilliance. This module harmonizes effortlessly with MCU/RGB interfaces, offering boundless possibilities for integration.
Embark on a journey of compact elegance with the SF-TC240H-8944B-T, boasting dimensions of 42.72×60.26 mm and an active area of 36.72×48.96 mm. Seamlessly engineered with an ST7789V controller onboard, it operates flawlessly within a logic supply voltage range of 2.6V to 3.3V.
Versatility meets resilience as the SF-TC240H-8944B-T thrives in diverse environments, with an operational temperature range spanning from -20℃ to +70℃ and storage capabilities extending from -30℃ to +80℃.
Immerse yourself in the portrait-oriented display, radiating with 250 cd/m2 luminance. Should your journey lead you to landscape vistas or demand heightened luminosity, our team stands ready to offer tailored technical support.
Explore the specifications at a glance:
- LCD Size: 2.4” inch TFT
- Resolution: 240×320 QVGA
- Viewing Angle: 12:00
- Outline Dimension: 42.7260.263.5 mm
- LCD Driver IC: ST7789V
- LCD Interface Type: MCU/RGB/SPI
- Temperature: Top -20°C to +70°C; Tst -30°C to +80°C
- Touch Panel: Resistive Touch Screen (RTP)
Application
This versatile 2.4” TFT LCD module finds wide application across a spectrum of devices including cash readers, mobile POS terminals, signal analyzers, measuring instruments, bench-top laboratory equipment, security systems, home automation systems, mini audio players, baby monitors, and various handheld devices, among others.
Product Features
| Product: | 2.4 Inch TFT |
|---|---|
| Touch Screen: | Resistive Touch Panel (RTP) |
| Resolution: | 240×320 QVGA |
| Cover Glass Dimension: | Without(Customizable) |
| Viewing Direction: | 12 O’clock |
| Interface: | MCU/RGB |
| Pin Number: | 48pins |
| Connection: | FPC Type Connection |
| Surface Luminance: | 250 Cd/m2 |
| LED Lifetime: | 40,000 Hours |
Resistive Touchscreen TFT 2.4 inch LCD Display Product Drawing
Interface Pin Definition
| NO. | PIN NAME | I/O | Description |
| 1 | YU | I | Touch Panel Pin |
| 2 | XL | I | Touch Panel Pin |
| 3 | YD | I | Touch Panel Pin |
| 4 | XR | I | Touch Panel Pin |
| 5 | GND | I | Ground |
| 6 | VCI | I | Power Supply 2.8V Voltage |
| 7 | VDD3 | I | Power Supply 2.8V/1.8V Voltage |
| 8 | VDD3_P(NC) | – | Set Open |
| 9 | BC_CTRL(NC) | – | Set Open |
| 10 | BC(NC) | – | Set Open |
| 11 | TE | O | Tearing effect output pin to synchronize MPU to frame writing, activated by S/W command. When this pin is not activated, this pin is low. |
| 12-29 | DB17-DB0 | I/O | Display Data I/O |
| 30 | SDA | I/O | Serial input signal |
| 31 | DOTLCK | I | Dot Clock Signal for RGB Interface Operation |
| 32 | ENABLE | I | Data Enable Signal for RGB Interface Operation |
| 33 | HSYNC | I | Line Horizontal Synchronizing Signal |
| 34 | VSYNC | I | Frame Vertical Synchronizing Signal |
| 35 | RDX | I | Read strobe signal input pin |
| 36 | WRX | I | Write strobe signal input pin |
| 37 | DCX | I | Register select signal |
| 38 | CSX | I | Input pin for chip selection signal |
| 39 | RESET | I | LCM Reset input signal |
| 40 | IM0 | I | Please refer to the fourth page, Select the MCU interface mode |
| 41 | IM1 | ||
| 42 | IM2 | ||
| 43 | IM3 | ||
| 44 | LED_A | I | LED Anode |
| 45 | LED_K1 | I | LED Cathode |
| 46 | LED_K2 | I | LED Cathode |
| 47 | LED_K3 | I | LED Cathode |
| 48 | LED_K4 | I | LED Cathode |

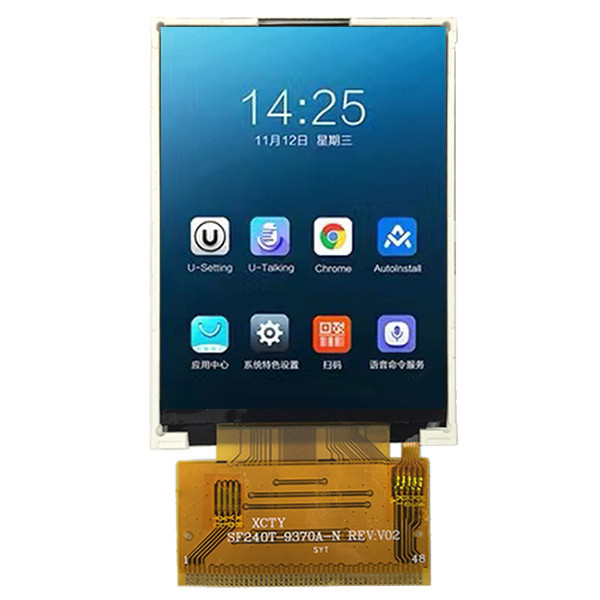

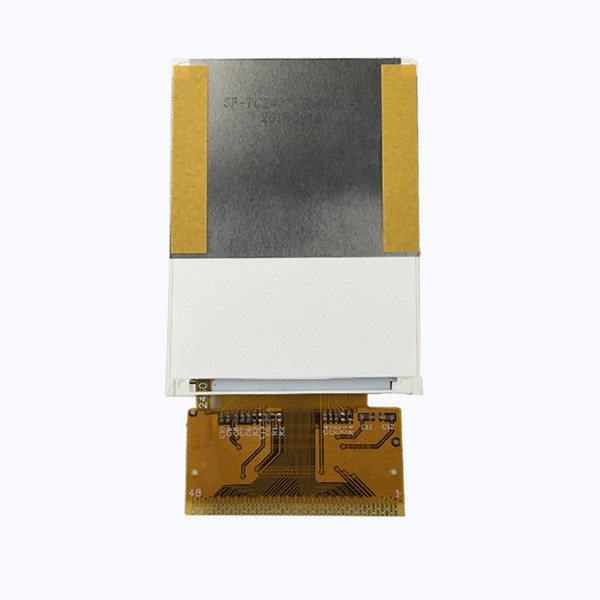

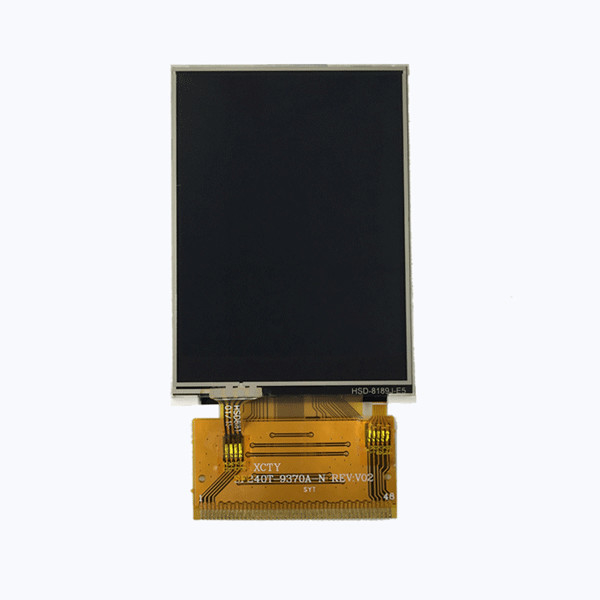

Resistive Touchscreen TFT 2.4 inch LCD Display Product Image
