TFT 1.44 Inch 128×128 ILI9163 MCU Interface Product Description
Discover the cutting-edge SHENZHEN TECHSTAR ELECTRONICS INCORPORATED CO., LTD TECHNOLOGY SF-TC144H-9375A-N, a square-shaped marvel boasting a 1.5-inch (or 1.44-inch) full-color TFT-LCD display, showcasing a crisp 128×128 resolution.
Illuminate your experience with a module surface brightness reaching 200 cd/m2 (typical value), and if you desire an even brighter backlight, our sales team is ready to assist, achieving an impressive 500 cd/m2 (nits).
Operating seamlessly in temperatures ranging from -20℃ to +70℃, the SF-TC144C-9375A-N is designed to endure, with storage temperatures spanning from -30℃ to +80℃.
Powering the LCD panel is a versatile supply voltage (VCC) ranging from 2.6V to 3.3V, with a typical voltage of 2.8V, complemented by support for an 8-bit MCU interface.
Versatility is the key, as the SF-TC144C-9375A-N finds its applications in embedded systems, automation, GPS, medical equipment, industrial devices, and security equipment. Ideal for scenarios demanding a TFT display delivering high-quality, vivid images. Step into a world of color and clarity with SHENZHEN TECHSTAR ELECTRONICS INCORPORATED CO., LTD TECHNOLOGY.
| Product: | Square 1.44 Inch TFT LCD | Resolution: | 128×128 Pixels |
|---|---|---|---|
| Viewing Direction: | 6 O’clock | Touch Screen: | Resistive Touch (optional) |
| Interface: | MCU 8bits | Pin Number: | 18 Pins |
| Connection: | ZIF FPC | ILI9163C | |
| Outline Dimension: | 30.9*36.51*2.3mm | Surface Luminance: | 200 Cd/m2 |
| Operating Temp.: | -20℃ To +70℃ | Compliance: | REACH & RoHS Compliant |

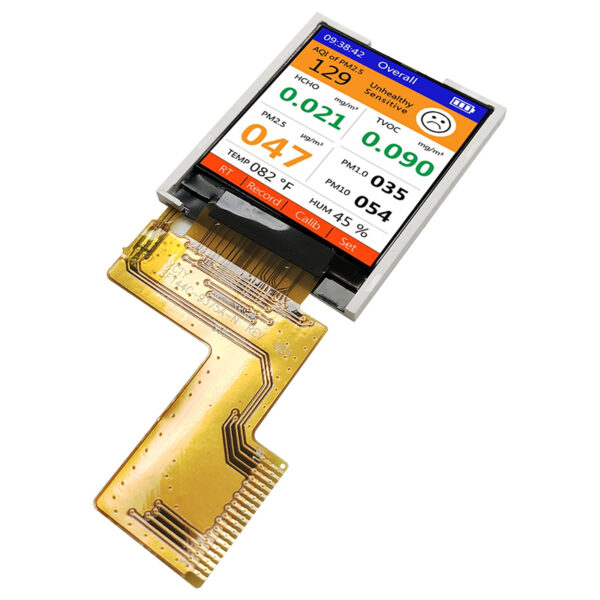

TFT 1.44 Inch 128×128 ILI9163 MCU Interface Product Drawing (SF-TC144C-9375A-N)
Interface Pin Definition (SF-TC144C-9375A-N)
| NO. | PIN NAME | I/O | Description |
| 1 | GND | I | Ground |
| 2 | IOVCC | I | Power Supply 1.8V/2.8V Voltage |
| 3 | VDD | I | Power Supply 2.8V Voltage |
| 4 | WR | I | Write strobe signal input pin |
| 5 | DB0 | I/O | Display Data I/O |
| 6 | DB2 | I/O | Display Data I/O |
| 7 | DB4 | I/O | Display Data I/O |
| 8 | DB6 | I/O | Display Data I/O |
| 9 | CS | I | Register select input pin |
| 10 | RESET | I | Reset Pin |
| 11 | DB7 | I/O | Display Data I/O |
| 12 | DB5 | I/O | Display Data I/O |
| 13 | DB3 | I/O | Display Data I/O |
| 14 | DB1 | I/O | Display Data I/O |
| 15 | RS | I | Register select signal |
| 16 | /RD | I | Read strobe signal input pin |
| 17 | LED-A | O | LED Anode |
| 18 | LED-K | O | LED Kathode |

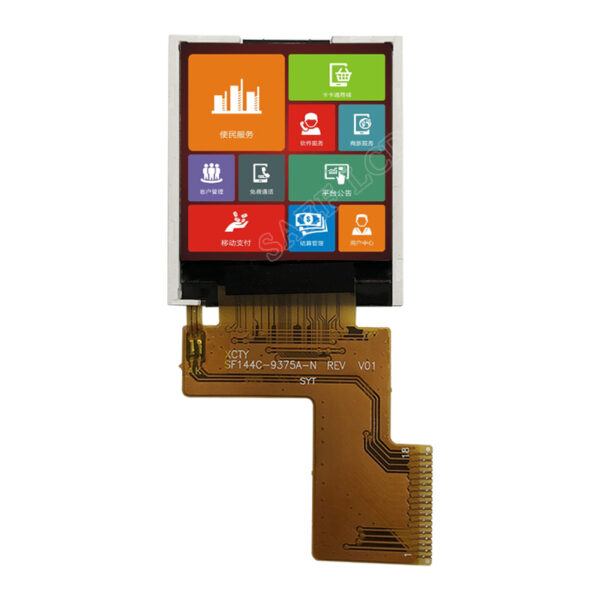

TFT 1.44 Inch 128×128 ILI9163 MCU Interface Real Product Image (SF-TC144C-9375A-N)

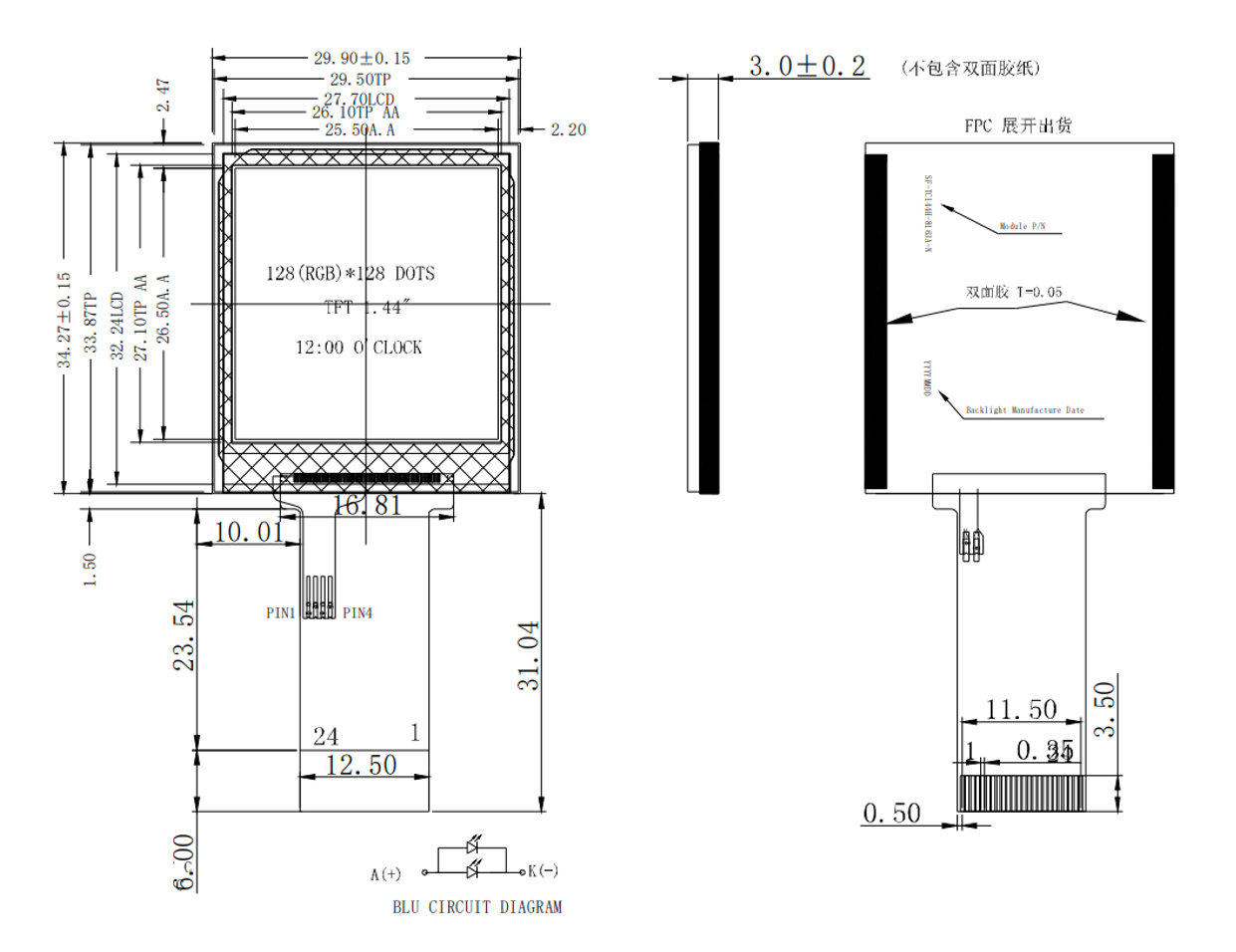

1.44 inch ( 1.5″ inch) TFT LCD display Product Drawing (SF-TC144H-8163A-T)
Interface Pin Definition (SF-TC144H-8163A-T)
| NO. | PIN NAME | I/O | Description |
| 1 | YD | I | Touch Panel Down Input Signal |
| 2 | XL | I | Touch Panel left Input Signal |
| 3 | YU | I | Touch Panel UP Input Signal |
| 4 | XR | I | Touch Panel right Input Signal |
| 5 | IOVCC | P | Power Supply1.8V Voltage |
| 6 | GND | P | Power ground |
| 7 | VDD | P | Power Supply2.8V Voltage |
| 8 | DB7 | I/O | Display Data I/O |
| 9 | DB6 | I/O | Display Data I/O |
| 10 | DB5 | I/O | Display Data I/O |
| 11 | DB4 | I/O | Display Data I/O |
| 12 | DB3 | I/O | Display Data I/O |
| 13 | DB2 | I/O | Display Data I/O |
| 14 | DB1 | I/O | Display Data I/O |
| 15 | DB0 | I/O | Display Data I/O |
| 16 | /RD | P | Read strobe signal input pin |
| 17 | /WR | I | Write strobe signal input pin |
| 18 | RS | I | Register select signal |
| 19 | /RESET | I | LCM Reset input signal |
| 20 | /CS | I | Input pin for chip selection signal |
| 21 | BL-K | I | LED Cathode |
| 22 | BL-K | I | LED Cathode |
| 23 | BL-A | I | LED Anode |
| 24 | NC | – | – |

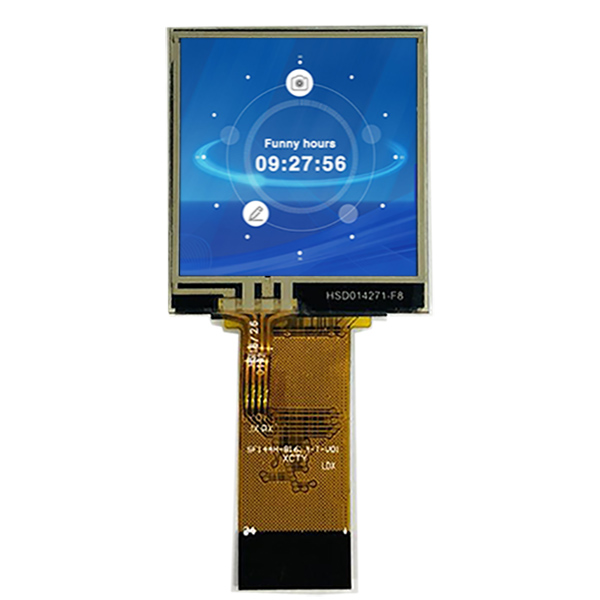

1.44 inch ( 1.5″ inch) TFT LCD display Product Image (SF-TC144H-8163A-T)
