Description
Delve into the realm of technological brilliance with our TFT Touch Screen, boasting an expansive 8 inches of visual splendor. With a robust 50-pin configuration and a vibrant 800×600 resolution, this screen promises a mesmerizing RGB interface complemented by its Resistive Touch capabilities.
Unveiling the 8-inch TFT RGB Touch Display Module:
Experience excellence with our SF-TC800I-9293C-T, a marvel of display technology. Boasting a stunning 800×600 resolution, this full TFT-LCD display offers a symphony of colors and clarity. Embracing the RGB interface, it seamlessly integrates into a myriad of applications, from embedded systems to medical equipment, promising unparalleled visual fidelity.
SF-TC800I-9293C-T represents the pinnacle of TFT innovation, sporting a TN-LCD design with a distinctive gray scale inversion direction at 6 o’clock. With a luminance of 250 cd/m2 (typical value), it illuminates your world with brilliance. Engineered to thrive in diverse environments, it operates flawlessly in temperatures ranging from -20°C to +70°C, with storage capabilities extending from -30°C to +80°C.
Experience seamless compatibility with the esteemed Innolux model EJ080NA-05B, ensuring effortless integration and optimal performance.
Product Features:
| Keywords: | 8 Inch Resistive Touchscreen TFT |
|---|---|
| Touch Screen: | Resistive Touch Panel |
| Resolution: | 800*600 |
| Cover Glass Dimension: | ODM |
| Interface: | RGB |
| Surface Luminance: | 250 Cd/m2 |
| LED Lifetime: | 40,000 Hours |
| Pins: | 50 |
| Viewing Direction: | 6 O’clock |
| Compliance: | REACH & RoHS Compliant |
8 inch TFT LCD 800×600 Dots Product DrawingÂ
DC Characteristics (VDD=2.8V,Ta=25°C)
| Item | Symbol | Min | Type | Max | Unit | Test Condition |
| Operating voltage | VDD | 3.0 | 3.3 | 3.6 | V | – |
| Supply current | IDD | – | – | 5 | mA | VDD=2.8V,Ta=25°C |
| Input voltage | VIH | 0.7VDD | – | VDD | V | – |
| VIL | 0 | – | 0.3VDD | V | ||
| Input leakage current | IIL | -1.0 | – | 1.0 | mA | VIN=VDD or VSS |
Reliability Test
| Item | Condition | Time (hrs) | Assessment |
| High temp. Storage | 80°C | 120 |
No abnormalities in functions and appearance |
| High temp. Operating | 70°C | 120 | |
| Low temp. Storage | -30°C | 120 | |
| Low temp. Operating | -20°C | 120 | |
| Humidity | 60°C/ 90%RH | 120 | |
| Thermal Shock Temp. Cycle | -20°C ¬ 25°C ®70°C
(0.5 hour ¬ 5 min ® 0.5 hour) |
10cycles | |

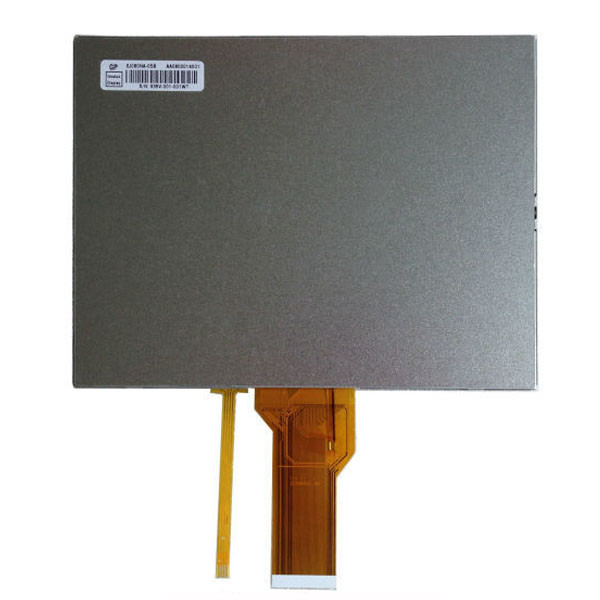

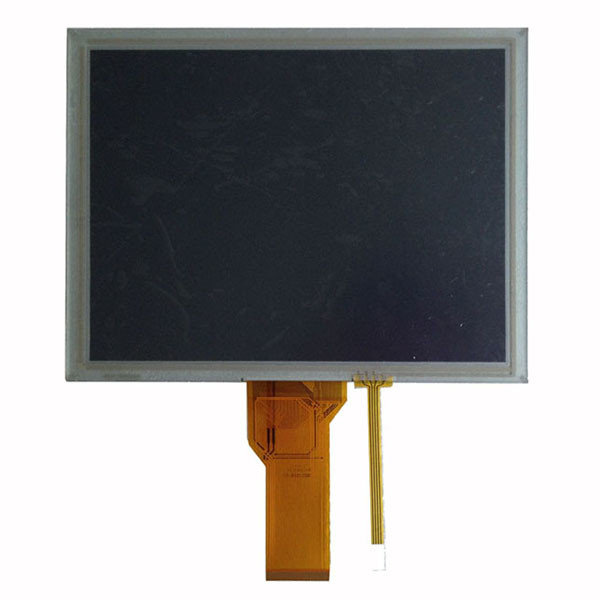

8 inch TFT LCD 800×600 Dots Product Image
