Unveiling the 8 Inch TFT LCD Display: Elevate Your Visual Experience with 800×600 Pixel Precision and Dynamic TN RGB 12:00 Screen
Introducing the SFTO800FC-7008AN TFT LCD display—a stellar 8-inch masterpiece featuring a TN type with a 12:00 viewing direction and an impressive resolution of 800×600 pixels. This industrial-grade TFT LCD Display Module boasts a 24-bit RGB interface, ensuring unparalleled visual vibrancy. Operating at a power voltage of 3.3V, with Vdd ranging from 3.0V to 3.6V, it’s a technological marvel.
What sets the SFTO800FC-7008AN apart is its capacitive touch panel, providing a seamless interface with optional IIC and USB connections. Radiating at 250cd/m2 luminance, this TFT LCD module defines excellence under various lighting conditions. Ensuring top-tier quality, the SFTO800FC-7008AN finds its applications in industrial and medical settings, POS terminals, HMI systems, home automation, security systems, and beyond. Elevate your visual experiences with this cutting-edge industrial-grade display.
This 8-inch TFT display utilizes a color-active matrix TFT LCD employing an amorphous silicon TFT (thin film transistor) as its active switching device.
The 8-inch display of this PCAP TFT LCD boasts a capacitive touchscreen design, featuring customizable cover glass tailored to individual customer requirements.
The color gamut characteristic of this 8-inch TFT screen is 50% Min. 45%.
With a typical response time of 30 ms (maximum 35 ms), this 8-inch LCD TFT ensures swift and efficient performance.
Featuring a resolution of 800×600, this 8-inch TFT LCD display maintains a contrast ratio of Typ: 1000 Min: 800.
Operational in a broad temperature range from -20 degrees to +70 degrees, this 8-inch RGB TFT monitor offers versatility in various environments.
Being a green and environmentally friendly product, this 7-inch TN TFT LCD adheres to RoHS and is Halogen-free.
The 8-inch capacitive touch monitor stands out for its low driving voltage and minimal power consumption.
| Product: | 8 Inch RGB TFT LCD Display |
| Resolution: | 800 RGB X 600 |
| Surface Luminance: | 250 Cd/m2(nits) |
| Viewing Direction: | TN 12 O’clock |
| Interface: | 24 Bits RGB |
| Outline Dim.: | 182.9(H) ×141.0(V) × 5.5(T) (mm) |
| Pin Number: | 50pins |
| Active Area: | 162.0(H) X 121.5(V) (mm) |
| Surface Treatment: | Hard Coating(3H) |
| Connection: | Plug-In |
| Touch Screen: | RTP & CTP Optional |
| Display Colors: | 16.7 M |
| Operating Temp.: | -20℃ To +70℃ |
| Storage Temp.: | -30℃ To +80℃ |
| Certificate: | ISO9001:2015 / ISO1400:2015 |
| Compliance: | REACH & RoHS Compliant |
8 Inch RGB TFT LCD Display 800×600 Pixel TN 12:00 Product Drawing
Interface Pin Description
| Pin NO. | Symbol | Description |
| 1-2 | LEDA | Back light anode |
| 3-4 | LEDK | Back light cathode |
| 5 | GND | Ground |
| 6 | VCOM | For external VCOM DC input |
| 7 | DVDD | Digital Power |
| 8 | MODE | DE/SYNC mode select |
| 9 | DE | Data ENEABLE signal |
| 10 | VS | Frame synchronizing signal |
| 11 | HS | Line synchronizing signal |
| 12- 19 | B7-B0 | Data bus |
| 20-27 | G7-G0 | Data bus |
| 28-35 | R7-R0 | Data bus |
| 36 | GND | Ground |
| 37 | DCLK | Dot clock signal |
| 38 | GND | Ground |
| 39 | L/R | Source right or left sequence control. |
| 40 | U/D | Gate up or down scan control |
| 41 | VGH | Positive Power for TFT |
| 42 | VGL | Negative Power for TFT |
| 43 | AVDD | Analog Power |
|
44 |
RESET | Global reset signal pin. Active low to enter reset state suggest to connecting with an RC reset circuit for stability normally pull high. |
| 45 | NC | Not connect |
| 46 | VCOM | For external VCOM DC input |
| 47 | DITHB | Dithering setting.DITH=” H” 6bit resolution.
DITH=” L” 8bit resolution (default setting) |
| 48 | GND | Ground |
| 49 | NC | Not connect |
| 50 | NC | Not connect |
Electrical Characteristics
| Item | Symbol | Condition | Min | Type | Max | Uint |
| Digital Supply Voltage | VDD | – | 3 | 3.3 | 3.6 | V |
| Analog Supply Voltage | AVDD | – | – | 10.4 | – | |
| TFT Gate on voltage | VGH | – | – | 21 | – | V |
| TFT Gate off voltage | VGL | – | – | -7.8 | – | V |
| TFT Common voltage | VCOM | – | – | 3.8 | – | V |
Backlight Specifications
| Item | Symbol | Condition | Min | Type | Max | Uint |
| Forward voltage | Vt | If=20mA
/ 1-chip |
8.4 | 9.0 | 9.9 | V |
| Forward current | Ipn | – | 180 | – | mA | |
| Reverse Current | Ir | Vr=4V | – | – | 0.04 | uA |
| Uniformity(with L/G) | – | If=20mA | 75 | – | – | % |
| Luminance | Lv | If=20mA |
– |
250 |
– |
cd/m2 |
| Luminous color | White | |||||
Optical Characteristics
| Item | Symbol | Condition | Min | Type | Max | Uint | |
| Transmittance(w/o DBEF) | T% | 5.45 | 6.4 | – | % | ||
| Contrast Ratio | CR | – | 500 | – | – | ||
| Response time | tr+tf | – | 20 | 30 | ms | ||
|
Viewing Angle |
Top |
CR≧10 |
60 | 70 | – |
Deg. |
|
| Bottom | 65 | 75 | |||||
| Left | 65 | 75 | |||||
| Right | 65 | 75 | |||||
|
Color of CIE Coordinate |
W | x |
θ=0º Φ=0º |
– | 0.293 | – | |
| y | – | 0.323 | – | ||||
| R | x | – | 0.616 | – | |||
| y | – | 0.335 | – | ||||
| G | x | – | 0.284 | – | |||
| y | – | 0.538 | – | ||||
| B | x | – | 0.148 | – | |||
| y | – | 0.141 | – | ||||

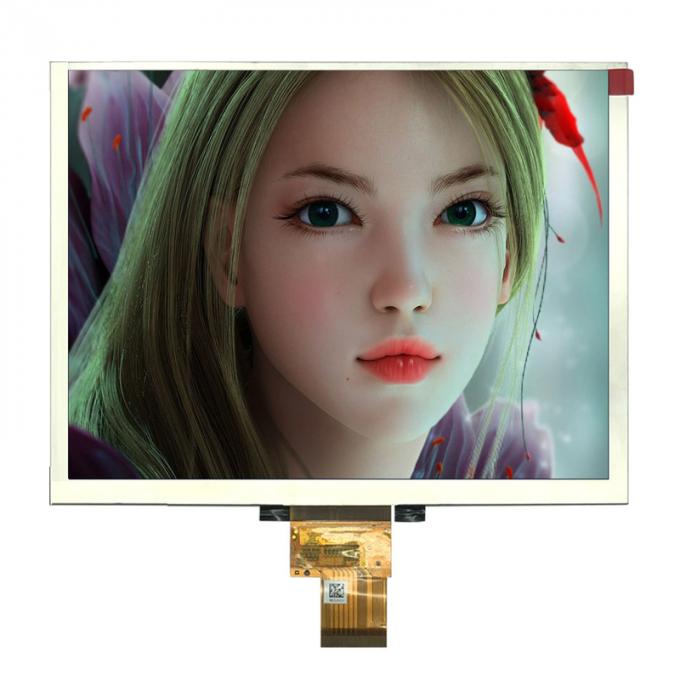

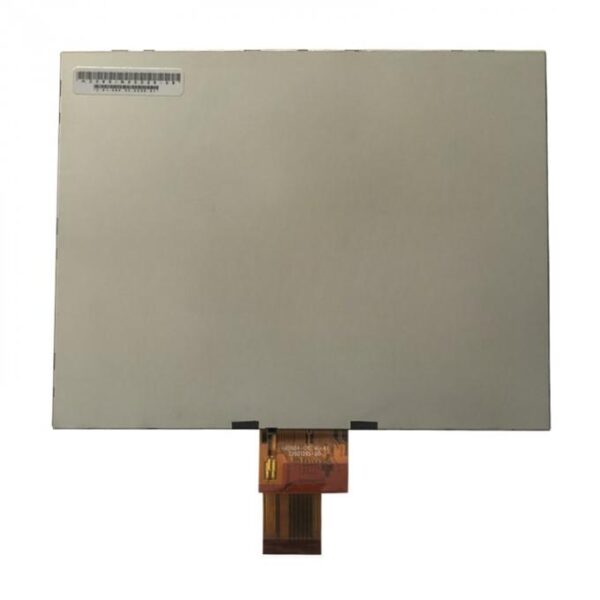

8 Inch RGB TFT LCD Display 800×600 Pixel TN 12:00 Product Image
