Introducing the 4.3 Inch Touch TFT Lcd Display 40 Pin 480×272 ST7282T2 RGB Interface TFT Display
Experience brilliance with our 4.3 inch Resistive Touch TFT Display RGB LCD Module.
Meet the SF-TC430T-8608A-T TFT LCD module, boasting a 4.3-inch diagonal screen, offering a vibrant 480xRGBx272 resolution, and featuring a Resistive Touch Panel seamlessly integrated into the LCD module. With dimensions measuring 105.4×67.1×4.05 mm and an impressive AA size of 95.04×53.86 mm, this display is crafted for excellence. Whether it’s embedded systems, industrial devices, security apparatus, or handheld equipment, this 4.3″ TFT LCD with Resistive touch screen delivers superior quality and vibrant imagery.
Noteworthy for its surface brightness of 200cd/m2 (nits), the SF-TC430T-8608A-T allows for customization, offering luminance levels of up to 500 cd/m2 (nits) with the new model variant SF-TC430T-8608B-T, providing enhanced visibility even in challenging environments.
Operating seamlessly within a wide temperature range from –20℃ to +70℃, the SF-TC430T-8608A-T TFT LCD Display Module ensures reliability and performance across diverse conditions.
| Keywords: | 4.3 Inch TFT LCD Display |
|---|---|
| Touch Screen: | Resistive Touch Screen |
| Resolution: | 480×272 |
| Cover Glass Dimension: | ODM |
| Interface: | RGB |
| Surface Luminance: | 200-500 Cd/m2 |
| LED Lifetime: | 40,000 Hours |
| Pins: | 40 Pins |
| Viewing Direction: | 6 O’clock |
| Connection: | ZIF / Plugging |
| Operating Temp.: | –20℃ To +70℃ |
| Vop: | 3V – 3.6V, Typical 3.3V |

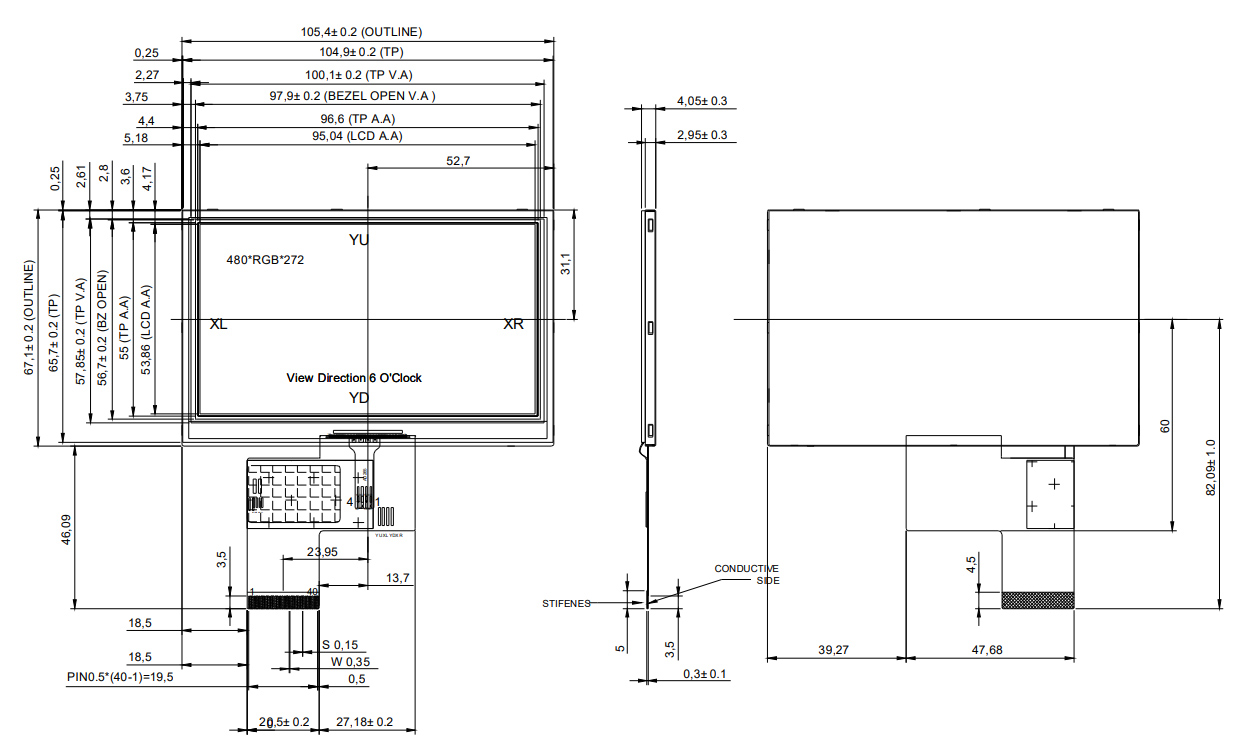

4.3 inch Resistive Touch TFT Display RGB LCD Module Drawing
Interface Pin Definition
| NO. | PIN NAME | I/O | Description |
| 1 | LED-K | I | LED Cathode |
| 2 | LED-A | I | LED Anode |
| 3 | VSS | I | Power Ground |
| 4 | VDD | I | Power Source |
| 5-12 | R00-R07 | I | RED Data Signal (LSB) |
| 13-20 | G00-G07 | I | GREEN Data Signal(LSB) |
| 21-28 | B00-B07 | I | BLUE Data Signal(LSB) |
| 29 | VSS | I | Power Ground |
| 30 | DLCK | I | Clock Signal to Sample each date |
| 31 | DISP | I | Display ON/OFF Signal |
| 32 | HSYNC | I | Horizontal Synchronizing Signal |
| 33 | VSYNC | I | Vertical Synchronizing Signal |
| 34 | DE | I | Input Data enable control |
| 35 | NC | – | Set Open |
| 36 | GND | I | Power Ground |
| 37 | XR | I | Touch Panel PIN |
| 38 | YD | I | Touch Panel PIN |
| 39 | XL | I | Touch Panel PIN |
| 40 | YU | I | Touch Panel PIN |

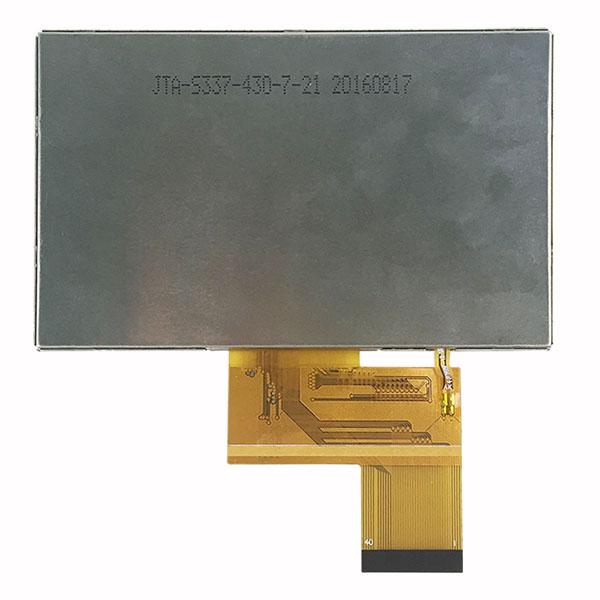

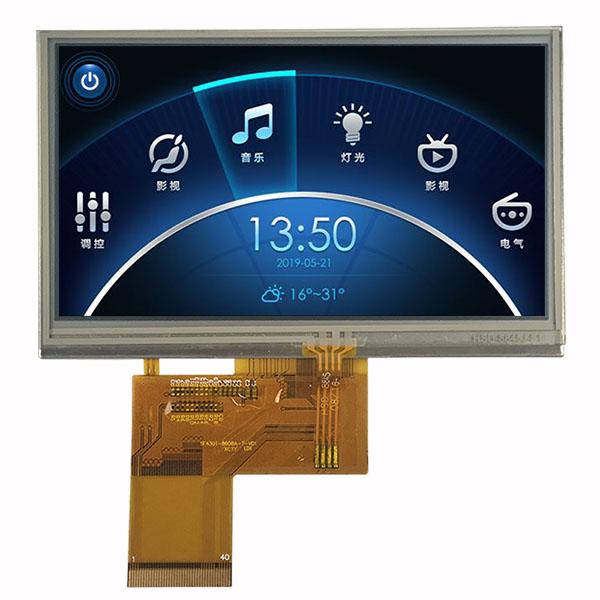

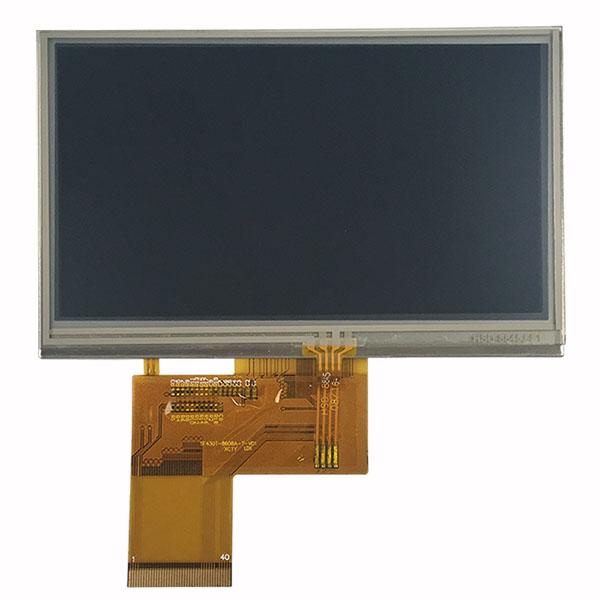

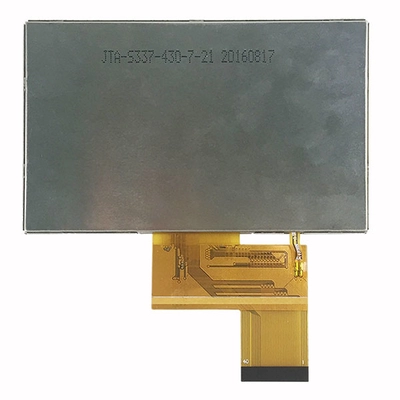

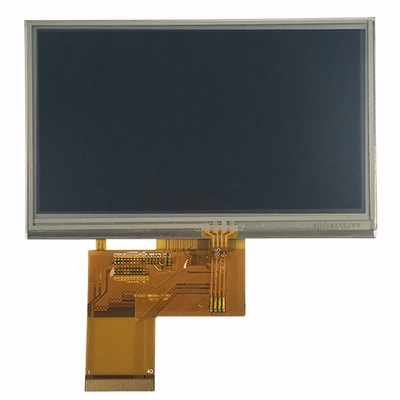

4.3 inch Resistive Touch TFT Display RGBÂ LCD Module Real Product Image
(with CTP optional)
