Wisechip 3.12″ 256*64 Dots OLED Display Module with SPI/Parallel/I2C Interface

Unveiling the Marvel: UG-5664ASWEF01 3.12″ OLED Display Module with 256×64 Dots, SPI/Parallel/I2C Interfaces

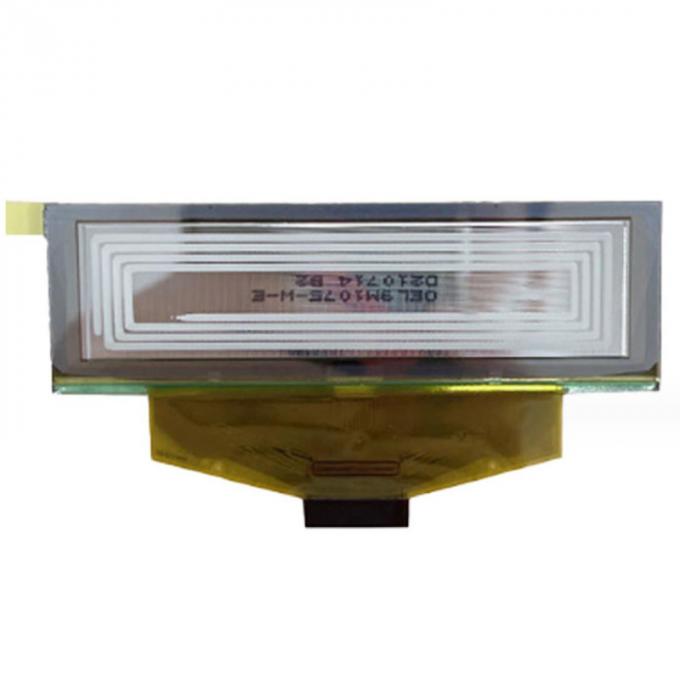

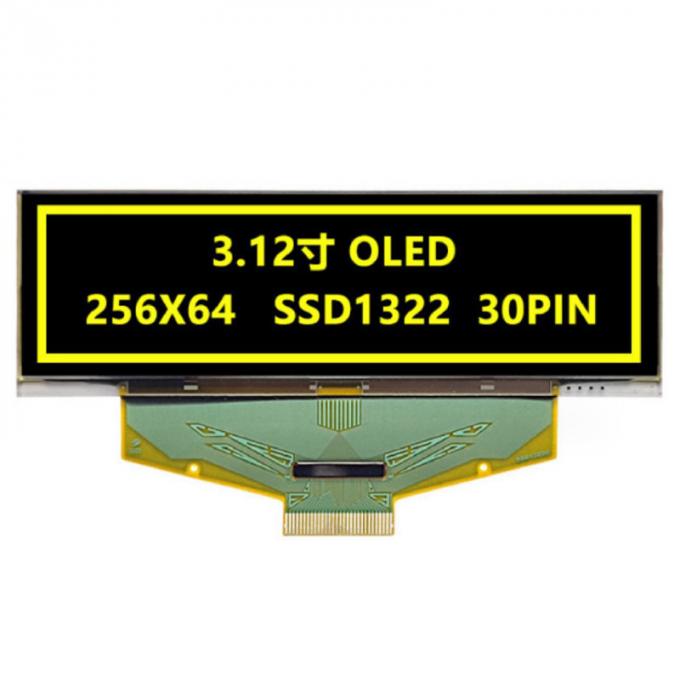

Behold the avant-garde realm of Organic Light-Emitting Diodes (OLEDs)—pioneering technology ushering in a new era of brilliance, rendering images with unparalleled clarity and responses of unmatched agility. This 3.12-inch marvel, denoted as UG-5664ASWEF01 OLED display, boasts an arrangement of 256 x 64 individual monochromatic dots.

Feather-light, sipping minimal power, and compact in size, this OLED module offers a plethora of interface options—defaulting to SPI, with parallel and I2C interfaces also at your disposal.

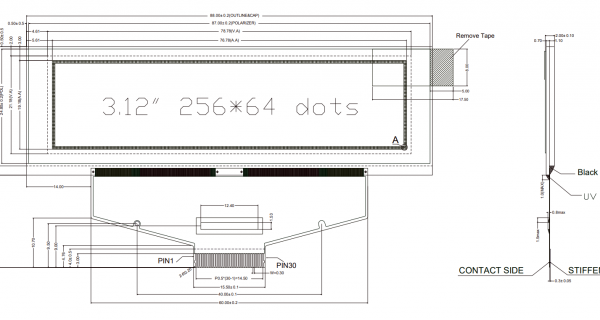

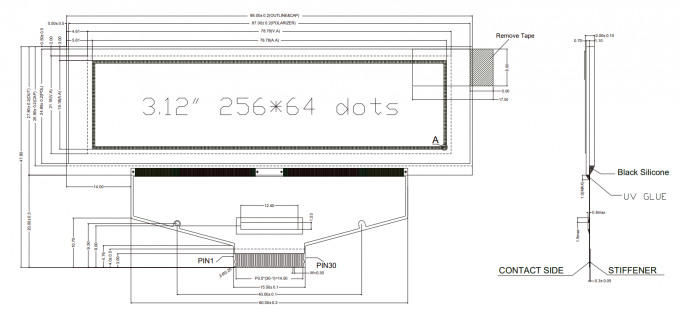

Dive into the dimensions: the active area spans 3.12 inches diagonally, with the module measuring 88.00 (W) x 27.80 (H) mm, and the active area specifically occupying 76.78 (W) x 19.18 (H) mm. What sets this 3.12-inch OLED display apart is the integration of IC SSD1322 and an eye-catching high contrast ratio, boasting an impressive 20,000:1.

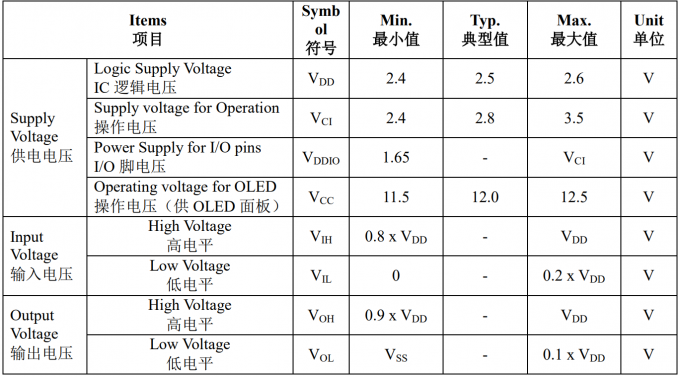

Navigating voltage specifics, the logic supply embraces a range of 2.4V-2.6V, typifying around 2.5V. Versatility is its forte, finding its calling in a myriad of applications—ranging from medical equipment, POS systems, and home appliances to industrial instruments, automation, automotive displays, and beyond. Let this OLED be the canvas for innovation in realms like audio-visual display systems, personal care appliances, household goods, and dynamic information displays—a testament to its adapt Feature:

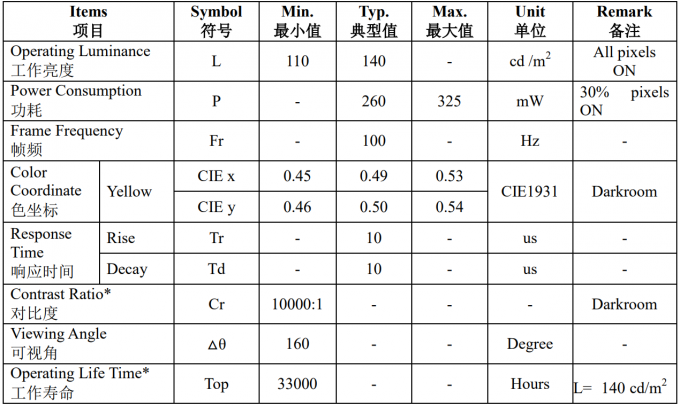

• This OLED display boasts a 3.12-inch screen with a rapid response time of 10 microseconds at +25 °C.
• With a resolution of 256×64 pixels, this 3.12-inch OLED screen offers an expansive viewing angle of up to 175 degrees.
• The slim profile of this 3.12-inch OLED display, available in both Parallel and SPI interfaces, enhances its versatility.
• This OLED display in white or yellow variant eliminates the need for a backlight, as it is self-illuminating.
• The mono OLED version of this 3.12-inch display delivers high brightness and an impressive contrast ratio of up to 2000:1.
• Operating seamlessly in extreme conditions, this OLED display can endure temperatures ranging from -40 °C to 85 °C.
• Featuring a SPI interface, this 3.12-inch OLED display consumes minimal power, thereby reducing CO2 emissions.

Product Information:
