SFTO1560SMT-7050A3-N PCAP TFT Display: A Visual Marvel from China
Step into the realm of cutting-edge display technology with our USB PCAP TFT Display, boasting a generous 15.6-inch screen size and a dazzling 1000 Nits surface brightness.
The SFTO1560SMT-7050A3-N PCAP TFT display stands out as a masterpiece, leveraging amorphous silicon TFTs (Thin Film Transistors) to power its vibrant color display. With a Full-HD resolution of 1920×1080 pixels, each pixel is meticulously divided into distinct RED, GREEN, and BLUE dots, arranged in vertical stripes, rendering a mesmerizing spectrum of 16.7 million colors with a color gamut of 45%.
Powered by an integrated LED driver for back-lighting, this display delivers unmatched clarity and brilliance in graphics and text. Whether you’re indulging in multimedia experiences or diving into professional applications, the SFTO1560SMT-7050A3-N PCAP TFT display ensures an immersive visual journey.
Equipped with an eDP (Embedded Display Port) Ver1.2 interface and operating at a voltage of +3.3VDC, this display offers seamless connectivity and efficient power management. The incorporation of color filters enhances color performance, resulting in brighter and crisper images that captivate the senses.
Highlighted Features:
- eDP interface for seamless connectivity
- High-speed response for fluid interactions
- 6-bit (Hi-FRC) color depth, displaying a rich palette of 16.7 million colors
- Edge-type (LED) backlight for uniform brightness
- Compatibility with RGB98% and NTSC45% (NTSC72% available)
- High luminance, contrast ratio, and wide viewing angle for optimal viewing experiences
- Rohs and Halogen-free materials for eco-conscious usage
- TEO 6.0, ES6.0 Compliant for industry-leading standards
- Gamma Correction for precise color calibration
Experience innovation at its finest with the SFTO1560SMT-7050A3-N PCAP TFT display, where every pixel tells a story of excellence and sophistication.
Mechanical Specifications
| Parameter | Specification | Unit | Note |
| Display size | 15.6” (Diagonal) | inch | |
| Active area | 344.16(H) ×193.59(V) | mm | |
| Pixel Format | 1920(H) ×1080(V) | pixel | |
| Pixel pitch | 0.17925(H) x 0.17925 (V) | mm | |
| Pixel configuration | R, G, B vertical stripe | ||
| Display mode | Normally black | ||
| Power Consumption | 2.94 | W | |
| Surface treatment of front polarizer | Anti-glare coating: (3H) | ||

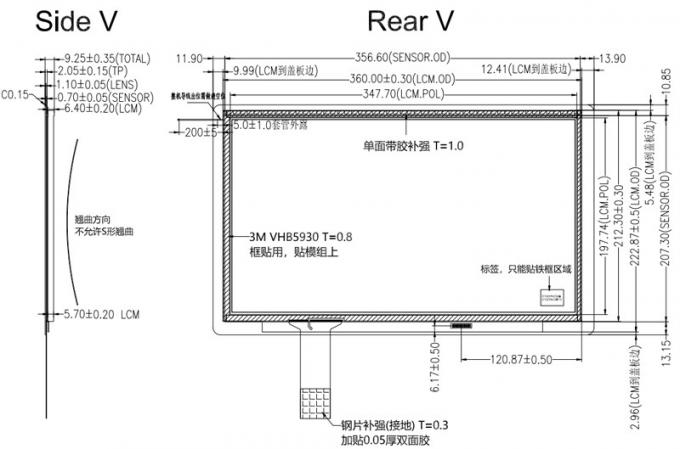

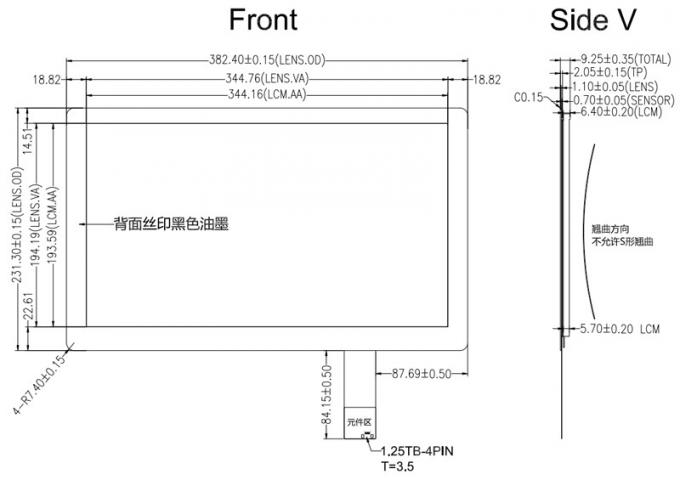

Outline Dimensions
| Parameter | Min | Typ | Max | Unit | Remark | |
|
Unit outline dimensions |
Width | 350.46 | 350.76 | 351.06 | mm | |
| Height | 204.66 | 204.96 | 205.26 | mm | ||
| Depth | 2.7 | 2.9 | 3.1 | mm | w/o PWB.[Note3-2] | |
| Mass | – | – | – | g | ||

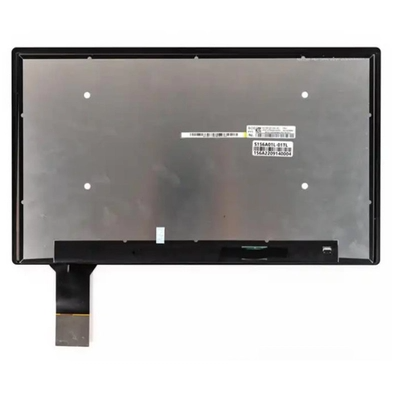

USB PCAP TFT Display 15.6 Inch eDP Interface Product Image
Interface Pin Definition
| Pin No. | Symbol | I/O | Function |
| 1 | NC | – | Reserved for CD |
| 2 | H_GND | P | High Speed round |
| 3 | Lane1_N | I | Complement Signal Link Lane 1 |
| 4 | Lane1_P | I | True Signal Link Lane 1 |
| 5 | H_GND | P | High Speed round |
| 6 | Lane0_N | I | Complement Signal Link Lane 0 |
| 7 | Lane0_P | I | True Signal Link Lane 0 |
| 8 | H_GND | P | High Speed round |
| 9 | AUX_CH_P | I | True Signal Auxiliary Channel |
| 10 | AUX_CH_N | I | Complement Signal Auxiliary Channel |
| 11 | H_GND | P | High Speed round |
| 12 | LCD_VDD | P | LCD logic and driver power(3.3V) |
| 13 | LCD_VDD | P | LCD logic and driver power(3.3V) |
| 14 | NC | I | Reserved for LCD manufacturer’s use |
| 15 | LCD_GND | P | LCD logic and driver ground |
| 16 | LCD_GND | P | LCD logic and driver ground |
| 17 | HPD | O | HPD signal pin |
| 18 | LED-1 | P | Backlight ground |
| 19 | LED-2 | P | Backlight ground |
| 20 | LED-3 | P | Backlight ground |
| 21 | LED-4 | P | Backlight ground |
| 22 | BL_ENABLE | I | Backlight on/off |
| 23 | BL_PWM_DIM | I | System PWM |
| 24 | NC | – | Reserved for LCD manufacturer’s use |
| 25 | NC | – | Reserved for LCD manufacturer’s use |
| 26 | BL_PWR | P | Backlight power |
| 27 | BL_PWR | P | Backlight power |
| 28 | BL_PWR | P | Backlight power |
| 29 | BL_PWR | P | Backlight power |
| 30 | NC | – | Reserved for LCD manufacturer’s use |
Absolute Maximum Ratings
| Parameter | Symbol | Condition | Ratings | Unit | |
| MIN | MAX | ||||
| +3.3V supply voltage | VDD | Ta=25℃ | -0.3 | +4.0 | V |
| Backlight supply voltage | VBL | Ta=25℃ | -0.3 | +26 | V |
| Input voltage(eDP) | VI | Ta=25℃ | -0.3 | +1.5 | V |
| Input voltage(BL) | VBL_I | Ta=25℃ | -0.3 | VDD+0.3 | V |
| Operation temperature | Topa | -10 | +60 | ℃ | |
| Storage temperature | Tstg | -20 | +60 | ℃ | |
