Description
Product Description
- 20×2 VATN Alphanumeric LCD Display (Model SF2002YB01VA)
- High-contrast black background with vibrant red LED backlight
- Compact size: 116 x 37 mm outline dimension
- Versatile interface options: 6800, SPI, and I2C
- Ideal for digital meters, medical equipment, home appliances, audio systems, coffee machines, microwave ovens, automobile dashboards, and car audio.
VATN LCD Technology Advantages
- Superior visual quality: Ultra-high contrast ratio (up to 120:1) and wide viewing angle (approx. 170°(H) 110°(V))
- Negative mode only for a distinctive display aesthetic
- Backlight options:Â White, green, yellow-green, red, blue
- High brightness for clear visibility
- Customizable:Â Optional four-color silk ink design
- Directly replaces DFSTN and Black Mask displays
Additional Features and Options
- Color choices:Â Red, green, blue, yellow, white, amber
- Formats:Â 8×2, 16×1, 16×2, 20×2, 20×4, and more
- Applications:Â Security control, white goods, audio, medical devices, POS systems, dashboard displays
Why Choose a VATN Display?
VATN displays provide a significant upgrade over traditional alphanumeric LCDs, offering excellent visibility and an eye-catching look. SHENZHEN TECHSTAR ELECTRONICS INCORPORATED CO., LTD Â extensive selection ensures you’ll find the perfect VATN display for your project.
| Product: | VATN Alphanumeric 20×2 Character LCD | ||
|---|---|---|---|
| Characters / Columns: | 20 Characters X 2 Lines | ||
| LCD Type: | VATN, Transmissive, Negative | ||
| Backlight Color: | White, Blue, Red, Yellow, Green, Purple And Amber | ||
| Operating Voltage: | Option 5V, 3V | ||
| Optics: | All Viewing Angles 80/80/80/80 | ||
| Outline Dim.: | 116.0(L) X 37.0(W) X 11.8(T) Mm | ||
| Viewing Area: | 82.6.0(L) X 18.4(W) Mm | ||
| Driving Method: | 1/16 Duty Cycles, 1/5 Bias | ||
| Operating Temp: | -20°C To +70°C | ||
| Pin Number: | 16 Pins | ||
| Controller: | SPLC780D Or Equivalent | ||
| Interface: | MPU, 6800 Serial, I2C Optional | ||
| Compliance: | REACH & RoHS Compliant | ||
20×2 VATN Alphanumic LCD Display, Character LCD 20×2 DrawingÂ

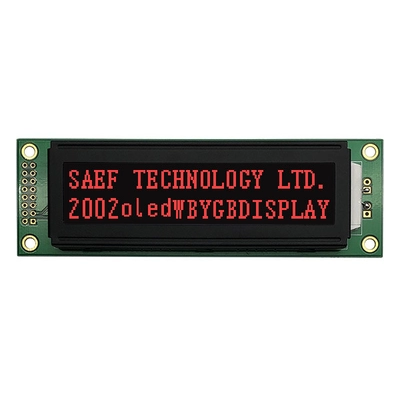

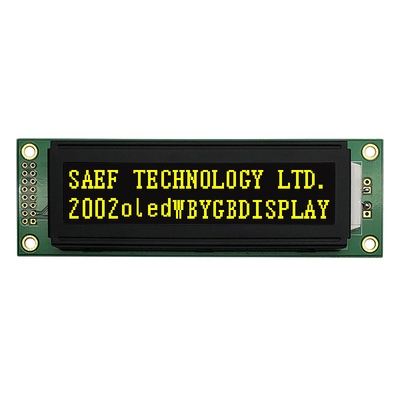

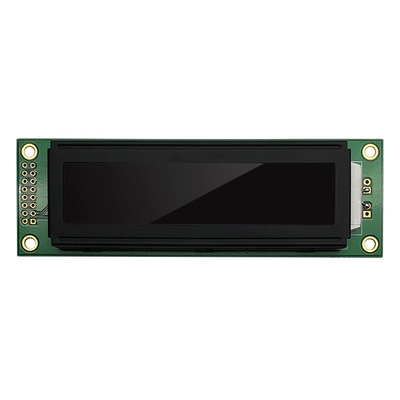

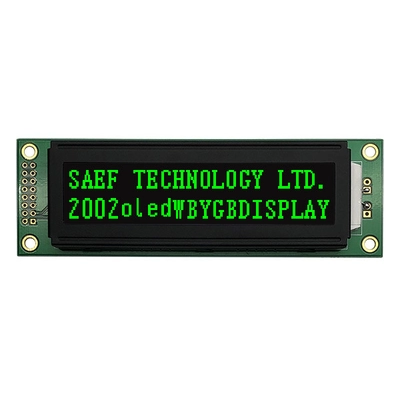

20×2 VATN Alphanumic LCD Display, Character LCD 20×2 Real Product Image
