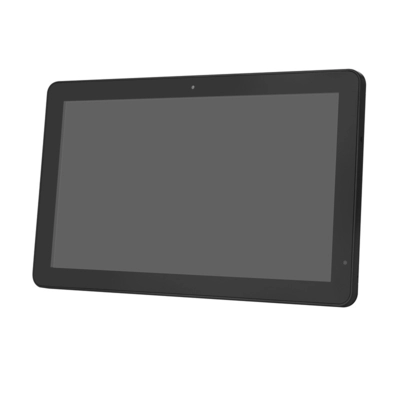

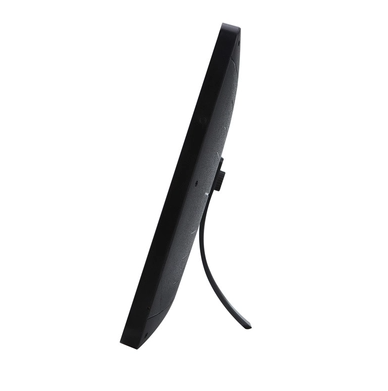

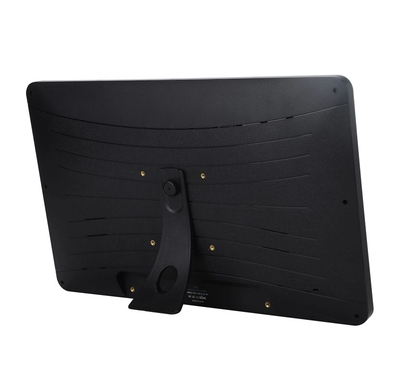

Wall Mount 15.6 Inch Android Touch All In One Pc 1920*1080 Ips Full Hd Touch Screen Digital Signage

Introducing the Wall Mount 15.6 Inch Android Touch All-In-One PC with a Stunning 1920*1080 IPS Full HD Touch Screen

Meet SFYR156T, an innovative wall-mounted touch screen signage android player boasting a generous 15.6-inch display. Designed with a FULL HD IPS screen, SFYR156T delivers crystal-clear visuals with a resolution of 1920×1080 pixels. Whether mounted on a wall or placed on a desktop stand, SFYR156T offers versatility in installation.

Key Features:

1. Powerful CPU Options: Choose from high-performance and energy-efficient CPUs including A64, RK3188, RK3288, KR3688, or KR3399.
2. Flexible Memory: Equipped with 2GB RAM as standard, with options for 1GB or 4GB (up to 8GB OEM).
3. Ample Storage: Enjoy 8GB of onboard storage, with options for 16GB (up to 64GB OEM).
4. Vivid Display: Featuring a 10-inch to 32-inch IPS Screen with Highlight LED Backlighting.
5. Responsive Touch: Optional 10-Point Capacitive Multi-Touch Screen for seamless interaction.
6. Versatile OS: Runs on Android 4.4, 5.1, 6.0, 7.1, 8.1, 9.0, or 11 for a tailored user experience.
7. Extensive Connectivity: Includes DC input, USB, Mini-USB (OTG), Audio, RJ45 Ethernet, SD card, with optional POE power and HDMI.
8. Installation Options: Choose from wall-mounted, in-wall, holder, stand, or OEM open frame configurations.

Display Specifications:

• 15.6-inch FULL HD IPS Screen
• Resolution: 1920×1080
• Brightness: 350 cd/m²
• Contrast Ratio: 1000:1
• Aspect Ratio: 16:9
• Display Area: 343×192mm

Standard Configuration:

• CPU: Rockchip RK3288 Quad-Core Processor (2.0GHz)
• RAM: 2GB
• ROM: 16GB
• Operating System: Android 6.0/7.1/8.1/9.0

Network Connectivity:

• WiFi: 802.11b/g/n
• Ethernet: RJ45 Interface
• Bluetooth: 4.0
• 3G/4G Support: External USB Dongle

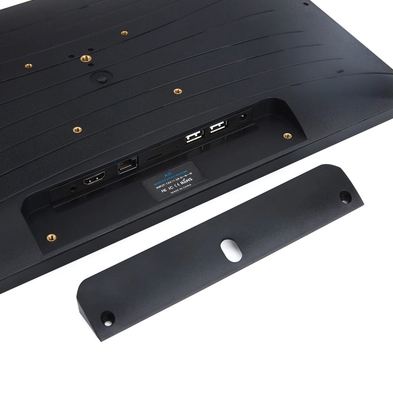

Interface Ports:

• SD Card Slot: Supports up to 32GB
• Mini USB: OTG for system debugging and programming
• USB 2.0: Three ports for peripherals like U disks, mice, keyboards, and printers
• RJ45: Network Interface
• Earphone Jack: 3.5mm
• Power: 4.0mm DC Jack

Multimedia Capabilities:

• Video Support: MPEG-1, MPEG-2, MPEG-4, H.263, H.264, RV (up to 1080P)
• Audio Support: MP3, WMA, AAC, and more
• Image Support: JPEG, JPG

Additional Features:

• Wireless Mouse and Keyboard Support
• Dual 2W Speakers
• Standard 200MP Camera (500MP optional)
• Multilingual OSD: Chinese, English, German, Korean, Russian, French, Spanish, Arabic, etc.
• Pre-installed Software: Includes maps, games, email, and customizable applications.

Included Accessories:

• Power Adapter: 12V/2A
• Desktop Bracket: Optional
• Remote Control: Optional
• User Manual
• Theftproof Cover Plate: Prevents theft of inserted devices like U disks or SD cards.

Product Dimensions:

• Outer Box: 10pcs/Carton
• Dimensions (LxWxH): 464275CM
• Net Weight: 21.8KG
• Gross Weight: 22.8KG

Applications: SFYR156T finds application in various contexts, including face recognition, robot displays, POS systems, security monitoring, smart homes, self-service terminals, medical device displays, advertising information displays, rail traffic displays, and more.

• Automatic Systems: Intelligent self-service terminals, retail terminals, O2O devices, robotics.
• Public Places: Airports, stations, parks, exhibition halls, stadiums, museums, convention centers.
• Business Organizations: Supermarkets, malls, hotels, restaurants, travel agencies.
• Financial Institutions: Banks, securities, insurance companies.
• Non-profit Organizations: Telecommunications, hospitals, schools.
• Real Estate: Apartments, offices, commercial buildings.
• Entertainment Venues: Theaters, clubs, bars, cafes, gyms, spas, golf courses, etc.

Advantages of the Product

1. IPS Full Viewing Angle (80/80/80/80): Boasting an expansive viewing angle, our IPS technology ensures exceptional clarity and versatility. Whether positioned atop, on a table, or handheld, it delivers an immersive viewing experience across diverse applications.
2. Outstanding Display Performance: From background color rendition to luminance and viewing angle, our display excels in every aspect. Enjoy top-notch intensity and clarity, enhancing your visual experience.
3. Wide Temperature Range: Built to withstand industrial conditions, our product operates flawlessly within a temperature range of -30℃ to +80℃, ensuring reliability in diverse environments.
4. Customizable Touch Options: Tailor your experience with the option for resistive touch screen inclusion or exclusion. Additionally, we offer bespoke CTP (capacitive touch panel) design services for personalized user interfaces, along with customizable FPC.
5. Cost-Effective Solution: Offering affordability without compromising quality, our product stands as a low-cost solution in the LCD industry, providing exceptional value for your investment.
6. Effortless Installation and Maintenance: Simplify setup and upkeep with our product’s user-friendly design, making installation and maintenance a breeze for seamless integration into your operations.

Android Autoplay Ad Demo Product Model: SFYR156T – Loop Play – TV Vertical Display

Developed for Android set-top boxes, our product presents a dynamic advertising demonstration with autoplay functionality upon boot-up.

Key Features:

• Versatile Application: Utilize our product across a myriad of industrial applications, including Android routers, download machines, GPS systems, dash cams, walkie-talkies, warehouse recording devices, advertising display machines, and more, leveraging the versatility of a set-top box + APK combination.

Customer-Specific Requirements:

1. Customized Playback: Tailor the playback sequence according to your preferences, with the ability to display menus, product promotional pictures, and videos across multiple TVs as per individual requirements.
2. Vertical Display: Accommodate vertical display needs effortlessly by rotating pictures 90 degrees or 270 degrees as desired.
3. USB Accessibility: Facilitate content updates with ease by enabling USB disk insertion for content replacement without internet connectivity, ensuring seamless content management.
4. Remote-Free Operation: Streamline operations with automatic playback upon power-on, eliminating the need for remote control intervention for enhanced convenience.

Additional Features Implemented on SFYR156T:

• Automated Playback: Enjoy hassle-free operation with autoplay functionality upon power-up, ensuring continuous playback until shutdown.
• Intelligent Content Recognition: Effortlessly switch between menu, promotional images, and videos based on the content available on the USB drive, providing a tailored viewing experience.
• Screen Orientation Control: Adjust screen orientation to suit vertical displays with the option to rotate screens via remote control, optimizing viewing angles for enhanced visibility.
