Wall Mounted 21.5 Inch All-In-One Tablet Pc 1920*1080 Ips Full Hd Touch Wifi Android System

Introducing the Wall Mounted 21.5 Inch All-In-One Tablet PC with 1920*1080 IPS Full HD Touchscreen and Android System

SFYR215T presents an innovative wall-mounted touch screen signage android player, boasting a generous 21.5-inch size and a stunning FULL HD IPS display. With a crystal-clear resolution of 1920×1080 dots, the YR215T seamlessly integrates into any space, offering versatility in installation options including wall mounting and desktop placement.

Key Features:

1. Processor: Choose from a range of high-performance and energy-efficient CPUs including A64, RK3188, KR3368, RK3288, KR3688, KR3399…
2. RAM: Standard 2GB (with 1GB/4GB options available) (8GB OEM)
3. Storage: Standard 8GB ROM (with 16GB optional) (32GB / 64GB OEM)
4. Display: Enjoy vibrant visuals on a 10-inch to 32-inch IPS screen with Highlight LED Backlight
5. Touch Capability: Optional 10 Points Capacitive Multi-Touch Screen
6. OS: Android 4.4/. 5.1/6.0/7.1/8.1/9.0/11…
7. Interfaces: Versatile connectivity options including DC input, USB, Mini-USB (OTG), Audio, RJ45 Ethernet, SD card (POE power/HDMI/NFC Optional)
8. Installation Options: Choose from wall mounted, in-wall, holder, stand, or OEM open frame configurations

Display Specifications:

• Screen Size: 21.5 inches
• Display Type: FULL HD IPS
• Resolution: 1920×1080
• Brightness: 350 cdm2
• Contrast Ratio: 1000:1
• Aspect Ratio: 16:9

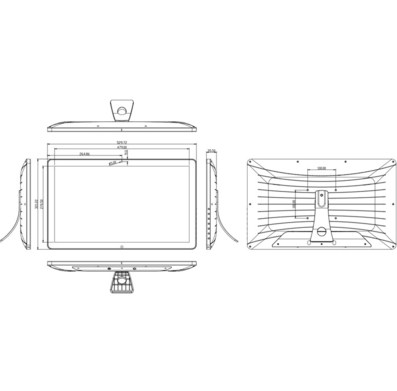

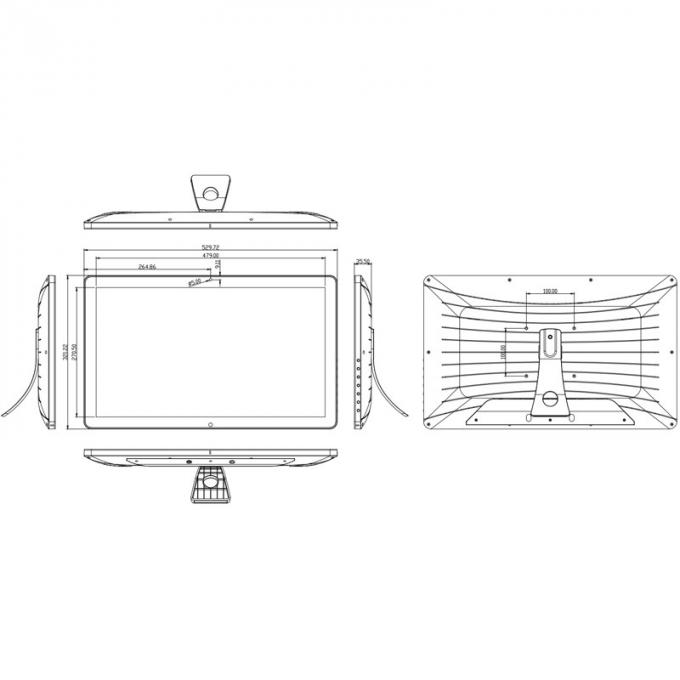

• Display Area: 479×270 mm

Standard Configuration:

• CPU: Rockchip RK3399 Dual-core Cortex-A72 + Quad-core Cortex-A53
• GPU: ARM Mali-T860MP4 GPU
• RAM: 4GB
• ROM: 16GB
• OS: Android 6.0/7.1/8.1/9.0

Network Connectivity:

• WiFi: 802.11b/g/n
• Ethernet: RJ45 network interface
• Bluetooth: Version 4.2
• 3G/4G: Supports external USB dongle

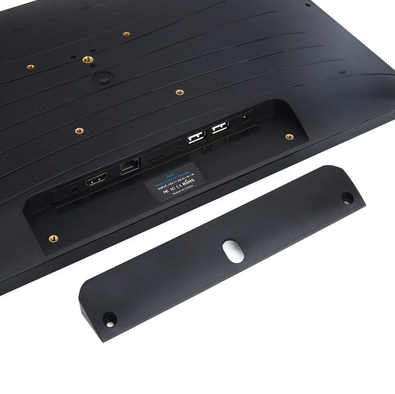

Interface Details:

• SD Card: 1×SD card slots (max support 32GB)
• Mini USB: 1×USB OTG
• USB 2.0: 3×USB 2.0 interface
• RJ45: 1×RJ45 network interface
• Earphone Jack: 1×3.5mm headphone jack
• Power Jack: 1×4.0mm power DC jack

Multi-Media Support:

• Video: MPEG-1, MPEG-2, MPEG-4, H.263, H.264, RV, etc. (max support 1080P)
• Audio: MP3, WMA, AAC, etc.
• Picture: JPEG, JPG

Additional Features:

• Wireless mouse and keyboard support
• Built-in 2×2W speakers
• Standard 200MP camera (optional 500MP)
• Multilingual OSD operations including Chinese, English, German, Korean, Russian, French, Spanish, Arabic, etc.
• Pre-installed software applications such as maps, games, email, and custom apps

Accessories Included:

• DC 12V/3A Adapter
• Desktop Bracket (Optional Remote Control)
• User’s Manual
• Theftproof Cover Plate for added security
• 48-hour aging test ensures product reliability

Product Dimensions:

• Packaging: 4pcs/Carton
• Box Size: Length Width Height: 634446CM
• Net Weight: 17.2KG
• Gross Weight: 18.8KG

Applications: SFYR215T finds applications across various domains including face recognition, robot display, POS systems, security monitoring, smart homes, self-service terminals, medical device displays, advertising information displays, rail traffic displays, and more.

• Automatic Systems: Intelligent self-service terminals, O2O smart devices, robot equipment, etc.
• Public Places: Subway stations, airports, gas stations, bookstores, parks, exhibition halls, stadiums, museums, convention centers, ticket agencies, HR markets, lottery centers, etc.
• Business Organizations: Supermarkets, shopping malls, exclusive agencies, chain stores, hotels, restaurants, travel agencies, pharmacies, etc.
• Financial Organizations: Banks, securities firms, funds, insurance companies, pawnshops, etc.
• Non-profit Organizations: Telecommunication companies, post offices, hospitals, schools, etc.
• Real Estate: Apartments, offices, commercial buildings, model rooms, property brokers, etc.
• Entertainment Venues: Movie theaters, fitness centers, country clubs, bars, cafes, beauty shops, golf courses, etc.

Features:

1. Auto-play on Power-Up: The device automatically initiates playback upon powering on, ensuring seamless operation without manual intervention.
2. Smart Content Recognition: It intelligently detects the content present in the connected USB directory, such as menus, promotional images, and videos, and initiates playback accordingly.
3. Customizable Playback Priority: Users can prioritize content playback based on the presence of specific media types, ensuring that relevant content is displayed first.
4. Orientation Flexibility: The device supports both horizontal and vertical orientations, allowing users to rotate the screen by 90 or 270 degrees using the remote control, thereby accommodating various installation setups.
5. Robust Hardware Design: Featuring a thin frame design and lightweight aluminum alloy construction, the device is suitable for embedding into diverse environments, including sheet metal or acrylic cabinet panels.
6. Efficient Heat Dissipation: The hollow design on the back cover facilitates efficient heat dissipation, ensuring optimal performance and longevity, especially during prolonged operation.

Scenario Applications:

1. Self-Service Terminals: Ideal for deployment in banks, stations, hospitals, airports, and shopping malls, where self-service kiosks require intuitive touch display interfaces for user interaction.
2. Digital Signage: Suited for displaying promotional content, menus, and advertisements in retail stores, restaurants, and entertainment venues, enhancing customer engagement and driving sales.
3. Industrial Automation: With robust performance and interface options, the device can be integrated into industrial environments for monitoring and control applications, enhancing operational efficiency and productivity.
4. Artificial Intelligence Robots: The embedded Android platform facilitates seamless integration with AI technologies, enabling the development of intelligent robots for various applications, including customer service, information retrieval, and entertainment.

Overall, the embedded Android all-in-one machine from SAEF TECHNOLOGY offers a versatile and reliable solution for a wide range of commercial and industrial applications, combining advanced features with robust hardware design to meet the evolving needs of modern businesses and industries.
