Description
Without Battery 10 inches Bracket AIO Tablet PC With POE Power Supply, 8G+128G With Android 12.0 OSÂ Product Introduction
SF-YR101T-3588 Whit /Black frame for optional)is a wall mounted touch screen signage android player, the Size of SF-YR101T-3588-is 10.1 inch, it is with IPS screen, SF-YR101T-3588 has the resolution:1280×800 dots. SF-YR101T-3588 can be installed as wall mounted and deskop stand.
Features:
1. CPU: High Performance and Energy Saving CPU KR3399/KR3588……
2. RAM: 8GB
3. ROM: 128GB
4. Screen: 10inch-32INCH I PS Screen(Highlight LED Backlight)
5. Touch Screen: 10 Points Capacitive multi-touch screen optional
6. Operating System: Android6.0/7.1/8.1/9.0/11.0/12.0……
7.Interface: DC input/USB/Mini-USB(OTG)/Audio/RJ45 Ethernet/SD card(POE power/HDM-I Optional)
8. Touch Screen: 10 Points Capacitive multi-touch screen optional
9.Installation method:Wall mounted/In Wall/Holder/Stand/OEM Open frame
| Display | Screen | 10.1 inch IPS screen | ||||||||||||
| Resolution | 1280×800 | |||||||||||||
| Brightness | 300 cdm2 | |||||||||||||
| Contrast | 800:01:00 | |||||||||||||
| Screen scale/Display area | 16:10/ Display area: 215×135mm | |||||||||||||
| Configuration | CPU | Rockchip RK3588 Dual core 4*Cortex-A76 + 4*Cortex-A55 | ||||||||||||
| RAM | 8GB | |||||||||||||
| ROM | 128GB | |||||||||||||
| System | Android 12.0 | |||||||||||||
| Network | WIFI | 802.11b/g/n | ||||||||||||
| Ethernet | Supports connection to the RJ45 network interface | |||||||||||||
| Bluetooth | Bluetooth 4.0 | |||||||||||||
| 3G/4G | Support external 3G/4G USB dongle | |||||||||||||
| Jack | SD | 1×SD card slots (max support 32GB) | ||||||||||||
| Mini USB | 1×USB OTG (through it to debug the machine, brush the system program) | |||||||||||||
| USB 2.0 | 3×USB 2.0 interface (support U disk, mouse, keyboard, printer etc) | |||||||||||||
| RJ45 | 1×RJ45 network interface | |||||||||||||
| Earphone | 1×3.5mm headphone jack | |||||||||||||
| Built-in POE | Yes | |||||||||||||
| Battery | NO | |||||||||||||
| Power | 1×4.0mm power DC jack | |||||||||||||
| Multi-Media | Video | Support MPEG-1, MPEG-2, MPEG-4, H.263, H.264, RV, etc. (max support 1080P) | ||||||||||||
| Audio | Support MP3, WMA, AAC and so on | |||||||||||||
| Picture | JPEG,JPG | |||||||||||||
| Other parameters | Wireless mouse keyboard | Support | ||||||||||||
| Speaker | 2×2W speakers | |||||||||||||
| Camera | Standard 200W pixel camera (500W pixel camera optional) | |||||||||||||
| OSD language | Chinese, English, German, Korean, Russian, French, Spanish, Arabia etc OSD operations | |||||||||||||
| Software support | Free installation applications (maps, games, e-mail, self developing apps, etc.) | |||||||||||||
| Attachment | Adapter | One, specifications: 12V/2A | ||||||||||||
| Desktop Bracket | One | |||||||||||||
| Wall Mounted | Yes | |||||||||||||
| Remote control | No | |||||||||||||
| User’s Manual | One | |||||||||||||
| Theftproof cover plate | One, (can cover insert devices, such as U disk or SD card, to prevent theft) | |||||||||||||
| Body Size | Color Box | 10pcs/Carton | ||||||
| Length | Width | Thickness | Length | Width | Height | Length | Width | Height |
| 245 | 170 | 25 | 385 | 225 | 60 | 470 | 400 | 320 |
| N.W | 0.64KG | N.W | 0.96KG | N.W | 9.6KG | |||
| G.W | 10.6KG | |||||||
Do you really know about Android touch all-in-one?
As the Android mobile operating system gradually becomes the mainstream device in the world, the diversification of its functions has promoted more intelligent electronic products to be further popularized among the public. With the iterative maturity of the Android system, the market for individual users has gradually expanded. The development of commercial use has driven the emergence of the Android all-in-one computer with this as the core value, which has gradually appeared widely in people’s daily work and life, public services and business activities.
Android touch all-in-one system open source, Android is open source, allowing modification, which to a large extent allows Android touch all-in-one manufacturers to change the version according to their own hardware, so as to better adapt to the hardware, and form a good combination with it.
Android touch all-in-one development convenience, Android platform to provide third-party developers with a very broad, free environment, will not be hindered by various rules and regulations, you can imagine, how many novel and unique software will be applied to Android touch all-in-one.
These advantages of the Android system and the use of a single chip in the Android system will make our control more perfect, and the Android touch all-in-one machine is widely used in our lives. Support keyboard dual input and the installation of tens of thousands of applications, when you think of the Android touch all-in-one machine, the impression in your mind is no longer just a cold machine, but a little bit of “human touch”.
SAEF TECHNOLOGY LTD provides customers with 7-32 inch center size intelligent display application solutions. Android touch all-in-one ten-point capacitive touch, open ROOT permission to support secondary development, front HD camera, built-in NFC/ID card reader, POE network port power supply network, support wired/wireless network, high-definition HDMI output, 485/232 serial port communication. The product supports customized interface, customized size, and customized appearance.
Product Advantages
1.IPS full viewing angle(80/80/80/80). Very good viewing angle. Perfect for different kinds of applications, regardless of putting on top, or on the table, or used handheld, etc.
2.Excellent display performance of background color, luminance, viewing angle, and intensity, etc.
3.Wide Temperature of Top of -30℃ to +80℃ for industrial applications.
4.Flexible to have with or without resistive touch screen. We can support to design customized CTP(capacitive touch panel) for customers as well. FPC is customizable too.
5.Low-cost solution among the same kinds in the LCD industry.
6.Easy to install and easy to maintain.
the following features have been completed on SF-YR101T-3588-IPS.
1. Auto-play when powered on,
2. If there is only a menu in the USB directory, only the menu will be played
3. There is only propaganda in the USB directory, and the promotional image is played
4. If you find that there are only videos in the catalog, then play the video
5. If there are menu pictures, promotional pictures, and videos in the catalog, you can choose to play. The default is the menu
6. If the TV screen is vertical, you can select the screen to rotate 90 degrees or 270 degrees through the remote control.
7. autoreplay, autoreplay, autoreplay, autoreplay,autoreplay until power off and shutdown.

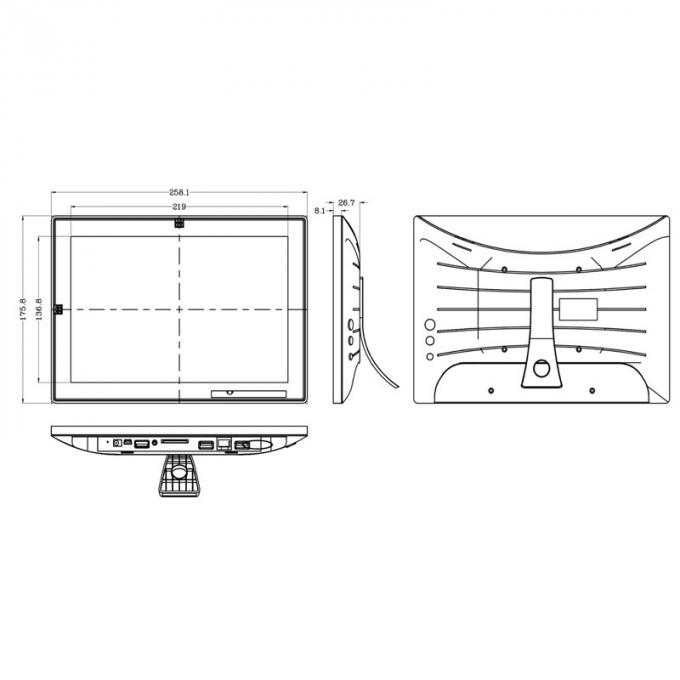

Without Battery 10 inches Bracket AIO Tablet PC With POE Power Supply, 8G+128G With Android 12.0 OS Product Drawing

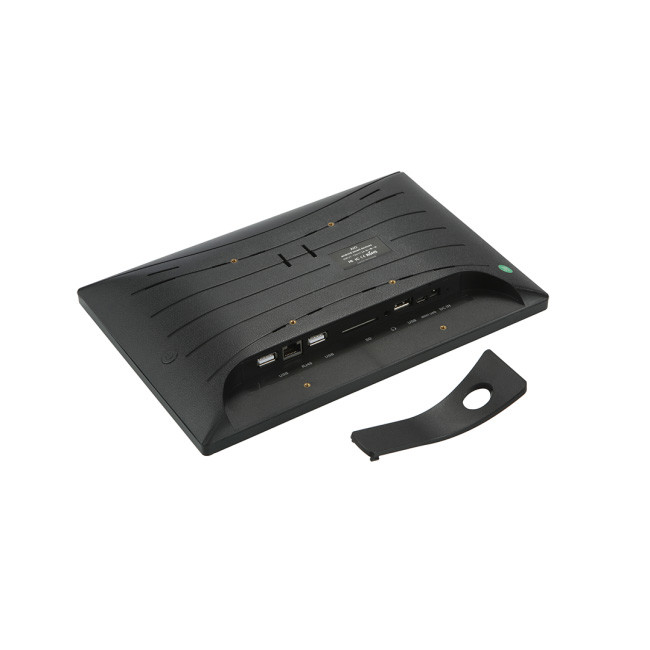

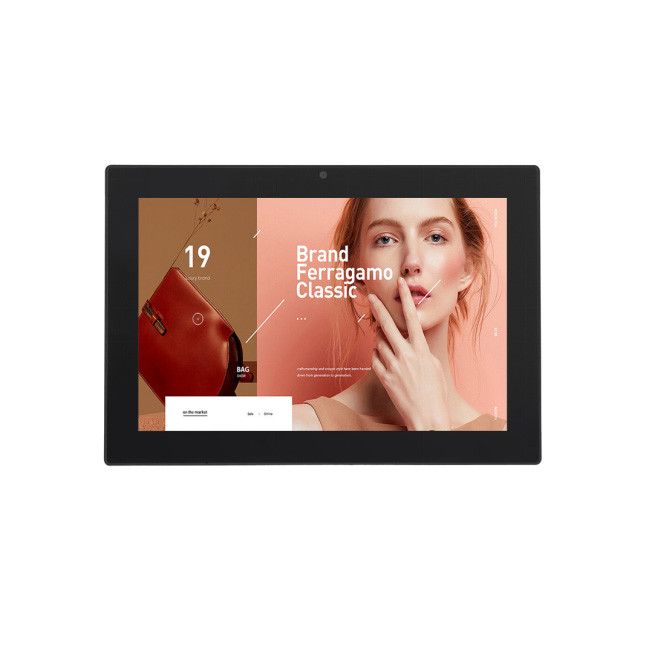

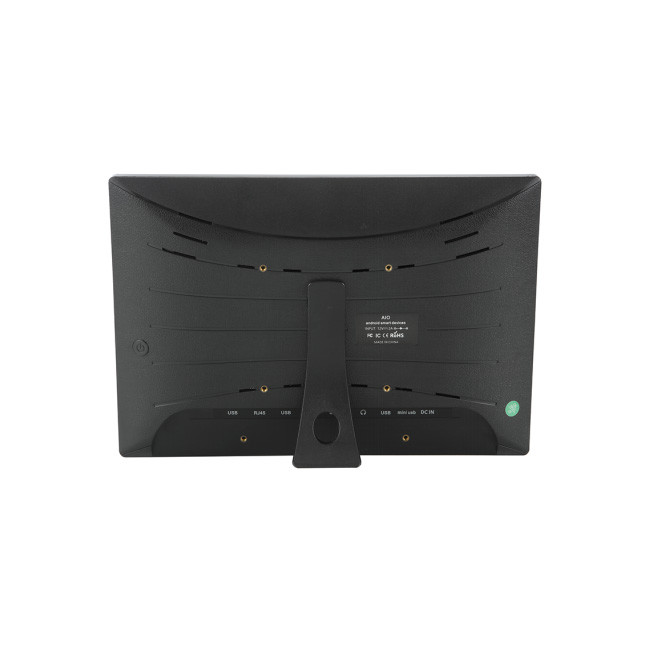

Without Battery 10 inches Bracket AIO Tablet PC With POE Power Supply, 8G+128G With Android 12.0 OSÂ Product Image
